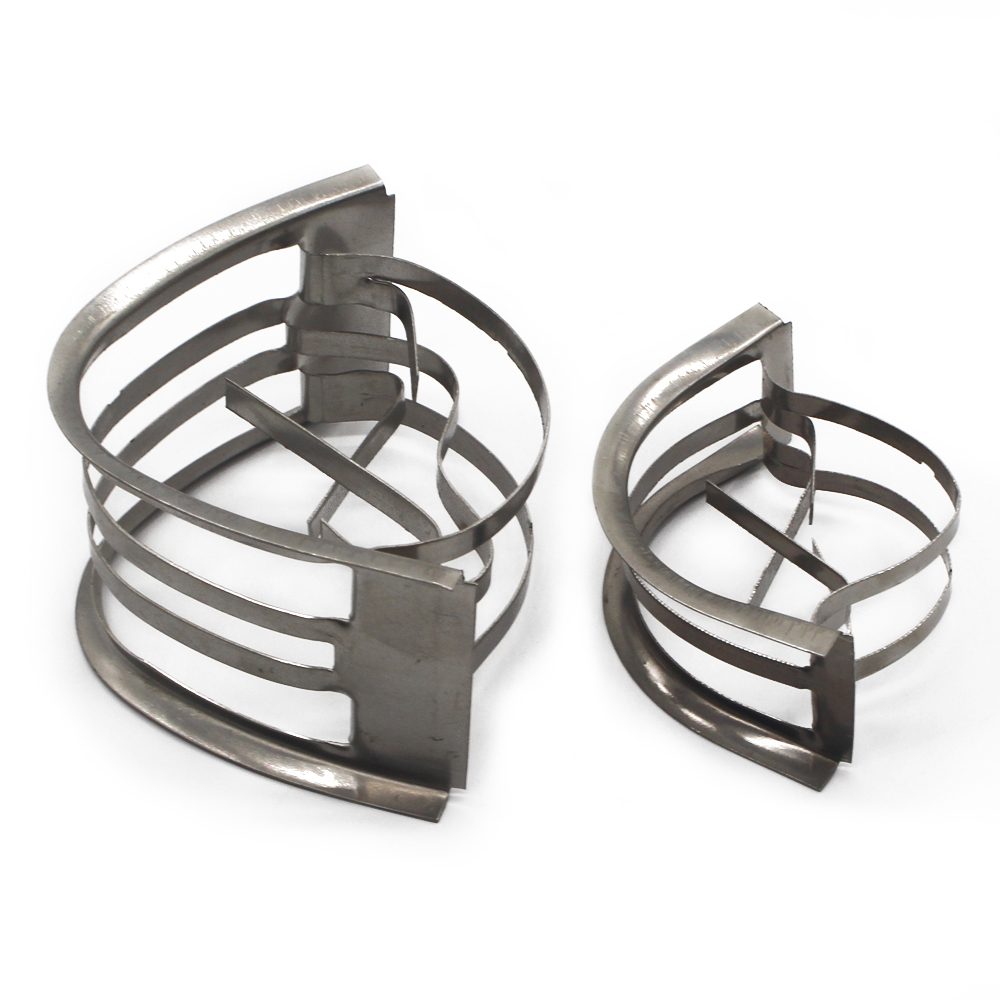

Intalox Metal Saddle Ring

YAMTOP Intalox Metal Saddle Ring (similar to Koch INTALOX SADDLES) gives the best of both the worlds in terms of performance low-pressure drop and high efficiency. Hence YAMTOP Intalox Metal Saddle Ring can be effectively used in both high pressures as well as vacuum towers.

Some of its other advantages include large effective interfacial area, high mechanical strength (its monolithic construction overcomes the problem of "opening out" at ends as experienced in ring shaped packings) and low cost. Metal Saddle Ring is available in various sizes, which give different combinations of efficiency and pressure drop.

Intalox Metal Saddle Rings offer a 30% lower pressure drop than Pall Rings but with a lower liquid hold-up. This facilitates
shorter packed bed heights. Metal Saddle Rings' physical shape permits maximum randomness and minimum alignment, Advanced design gives it a high rate of liquid film surface renewal producing a high mass transfer rate, leading to a greater capacity and efficiency compared to other random packings, Large number of contact points for homogenous distribution of liquid and gas, Facilitates shorter packed bed heights.

Main features: low pressure drop, large flux, high mass transfer efficiency, easy operation, small resistance, large flux and high efficiency. The strength and rigidity of filler are good Application scope: used in absorption tower, washing tower and separation tower

Intalox Metal Saddle Rings are an excellent choice for companies looking for a packing material that provides efficient mass transfer, low-pressure drop, and uniform liquid and gas distribution. With their high mechanical strength and ease of installation, these rings offer a cost-effective solution for a wide range of applications in the chemical industry.

IMTP Technical Parameter

Intalox Metal Saddle Ring Application:
• Desulphurization and decarburization system in compound ammonia plant
• Decompressed plant in crude oil separated plant
• All kind of separation process such as separation of methanol
• Separation of organic acid
• Absorbing or desorbing tower

IMTP General Guide

Intalox Metal Saddle Rings are used in a wide range of applications, including:

•Distillation columns: The rings are used as packing material in distillation columns to separate different components of a mixture based on their boiling points.

•Absorption columns: The rings are used in absorption columns to remove impurities from gas streams.

•Stripping columns: The rings are used in stripping columns to remove volatile components from a liquid stream.

•Gas scrubbers: The rings are used in gas scrubbers to remove contaminants from gas streams.

Intalox Metal Saddle Ring Features:

►High mechanical strength: Intalox Metal Saddle Rings have excellent mechanical strength, making them resistant to wear and tear. They can withstand high temperatures and pressure, making them ideal for use in harsh environments.

►Uniform liquid and gas distribution: The unique design of the rings promotes uniform liquid and gas distribution, which enhances mass transfer and ensures maximum efficiency.

►Large surface area: The rings have a large surface area, which provides ample contact between the gas and liquid phases, leading to excellent mass transfer performance.

►Low-pressure drop: Intalox Metal Saddle Rings offer a low-pressure drop, which translates to lower operating costs and energy consumption.

►Easy to install: The rings are easy to install and require no special tools or equipment.

Normal Package:

Plastic bag, Jumbo bag, Wooden box

Intalox Metal Saddle Rings are widely used in the chemical industry as a packing material for separation, absorption, and distillation columns. The rings provide a large surface area for gas-liquid contact and promote effective mass transfer while maintaining a low-pressure drop. The design of the rings ensures a uniform distribution of liquids and gases, making them ideal for a wide range of applications.
