HBVCAM OV3640 3MP Auto Focus Fixed Focus Android Linux  Camera Module with Free Driver

* Size:30*25*6.8±0.3 MM

* Sensor：OV3640(1/4'')

* Maximum Resolution：2048*1536 15fps

                                1920*1080  20FPS

* Fov:64° （ Lens can be adjustable,different Lens,FOV different）

* Interface:USB2.0

* Focus:fixed

* Output Formats:YUY2/MJPEG

* Supply voltage:DC 5V±5%

* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc



Specifications

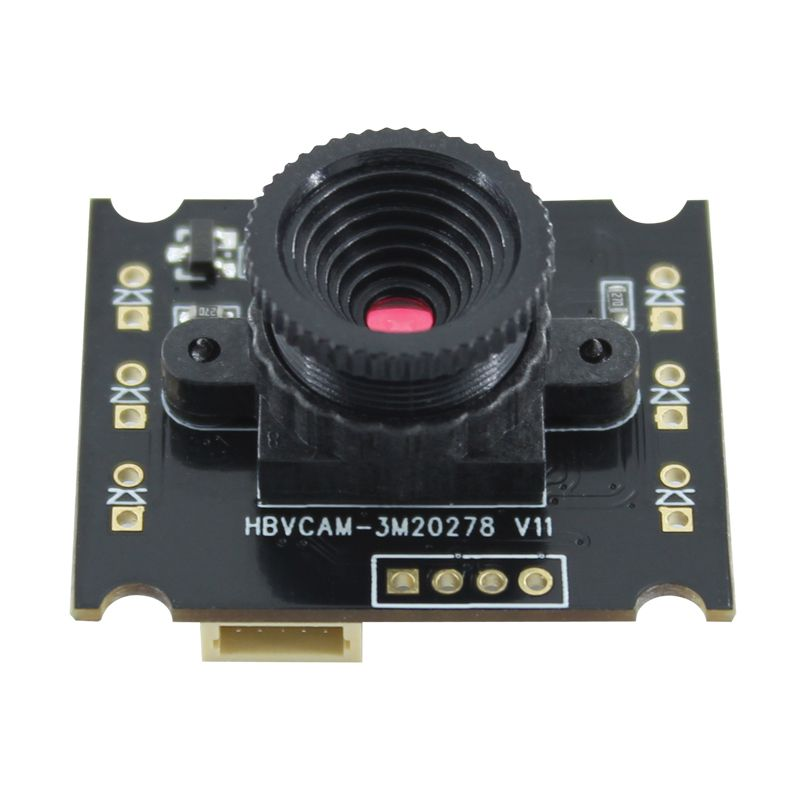

Module No.	HBVCAM-3M20278 V11
Module Size	30mm × 25mm × 12.0mm±0.3MM
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	750mW
Operating system request	Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV3640 (1/4” )
Seneor Package	CSP,Bare Die
Maximum resolution	2048*1536
Sensitivity	670mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 320x240    15FPS /      YUY2 320x240  17FPS MJPEG 352x288    15FPS /      YUY2 352x288  17FPS MJPEG 640x480    15FPS /      YUY2 640x480  17FPS MJPEG 1280x1204   5FPS /      YUY2 1280X1204 3FPS MJPEG 1600x1200   5FPS /      YUY2 1600X1200 3FPS MJPEG 2048x1536   5FPS /      YUY2 2048x1536 3FPS
S/N Ratio	34 db
Max Dynamic Range	70 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.8
EFL	2.8 mm
FOV	62°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH





Drawings

PRODUCTS SHOW

•

•

•

•

•

•

FACTORY SHOW

•

•

•

PACKAGE

FAQ

Q1.Are you factory or trade company?

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.

Q2.How long for productions time?

A2:Sample order is 4-5days. Bulk orders take 9-10 days.

Q3.What shipping ways do you have?

A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.

Q4.Could you offer OEM&ODM service?

A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.

Q5.How long is the production cycle?

A5:Sample order is 4-5days. Bulk orders take 9-10 days.

Q6.Whats is the payment terms?

A6:T/T, Ablibaba trade assurance.

Q7.Do you guarantee the quality of products?

A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.

Q8:Can I order samples?

A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
