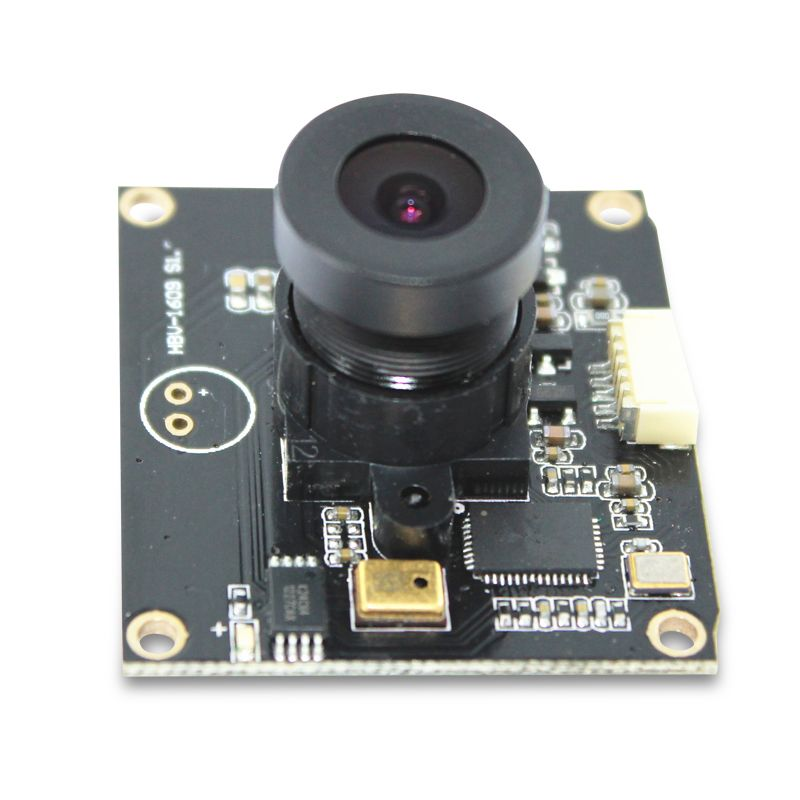

Free driver USB2.0 OV2643 android mini camera module built in microphone

A micro camera module is a small-sized camera that can be integrated into various devices for capturing images and videos. These modules are designed to be compact and lightweight, making them ideal for use in portable devices such as smartphones, tablets, drones, and wearable devices.

Product Description

Free driver USB2.0 OV2643 android mini camera module built in microphone

PRODUCT DETAILS

Model No.

HBVCAM-1609 S1.0

Model Size

35mm × 31.5mm × 18.5mm±0.5MM

Temperature (Operation) -30°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-infinity
Resolution 600LW/PH (Center)
PCB printing ink Black
interface USB 2.0
Power supply USB bus power
supply voltage DC 5V±5%
Maximum Power consumption

400 mW

Operating system request Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
 Sensor

OV2643 (1/4” )

Seneor Package CSP,Bare Die
Maximum resolution

1600*1200

Sensitivity 1250mv /(lux-sec)
Pixel Size 2.2μm x 2.2μm
 Maximum Image Transfer Rate

MJPEG 320x240 30FPS / YUY2 320x240 30FPS
MJPEG 352x288 30FPS / YUY2 640x480 30FPS
MJPEG 640x480 30FPS / YUY2 800x600 15FPS
MJPEG 800x600 30FPS / YUY2 1280x720 8FPS
MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS
MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS

S/N Ratio 39B
Max Dynamic Range 62B
Shutter type Electronic rolling shutter
AGC/AEC/Whiter balance Auto
Output Formats YUY2/MJPEG
Microphone NO
Lens Construction 4G+R
F/No 2.0
EFL

2.6 mm

FOV 120°
TV Distortion <-50%
Relative Illumination (Sensor) 70%
 IR Filter 650±10nm
Module Package Anti-electrostatic tray
Certifications FCC/CE/ROSH
 USB cable 50CM 1M 2M 3M
1.The parameters of  FOV are just for your reference, Different Lens has different FOV        2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If  you mind it, please don’t make an order for it. Thank you for your understanding
