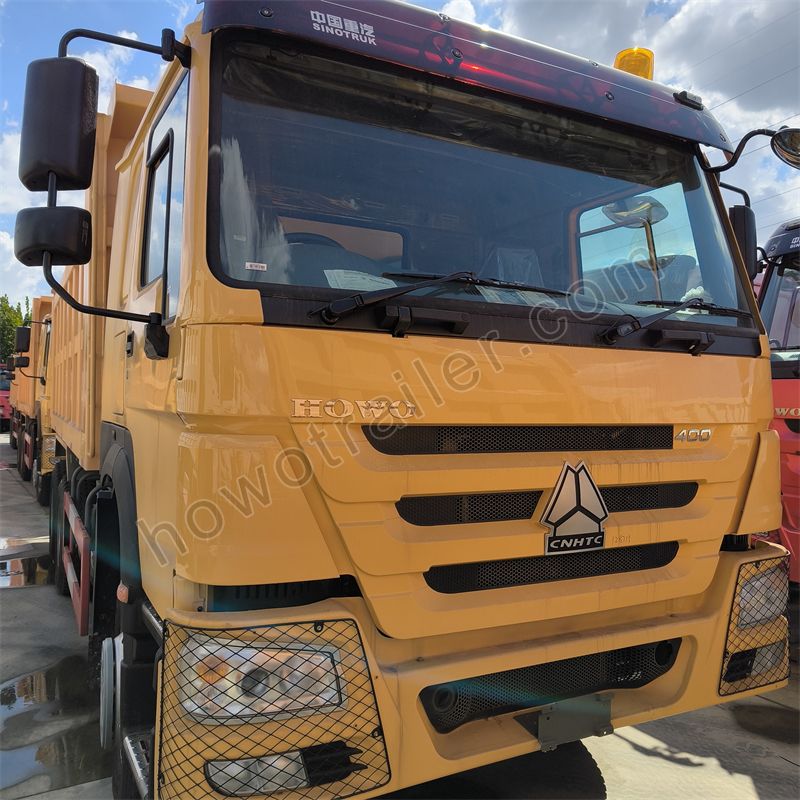

HOWO 6X4 Dump Truck

HOWO 6X4 Dump Truck

Product Description

Brief Introduction Over HOWO Tipper

HOWO tipper has extraordinary performance in construction, mining and other application scenarios especially in the harsh working environment, HOWO tipper is the most welcome heavy-duty tipper and it has the largest market share in Africa and many other regions,  HOWO Engines is at various horsepower + transmissions with various torques to meet the needs of different working scenarios, it has a variety of cabs with different configurations to meet different driving needs, it also has a variety of chassis and cargo bucket choices to satisfy different working needs, more than 1.5 million HOWO heavy truck tipper has been sold until now. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight, high rigidity, high loading capacity.

HOWO 6*4 (10 wheels), Mining and Construction Tipper /Dump truck, 400HP Technical Specifications

Cabin

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, air conditioner

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WP12.400, Euro 2, 400HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

VGD95, 1x9,000 KGS, Steering with double T-cross section beam

Rear Axle

HC16, 2x16,000 KGS, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Fuel Tank

300L

Tires

315/80R22.5 or 12.00R20 Tires, 10+1 Pics.

Color

Optional

Overall Dimension

8400×2600×3500 mm

Box Dimension

5800*2300*1500 mm, 20CBM

Thickness: Floor 8 mm, Side 6 mm

Front or middle Lifting System
