Solar Flood Light

A solar panel flood light is a lighting system that is powered by a photovoltaic panel, which is a device that converts sunlight into electricity. The solar panel is used to charge a battery, which stores the energy until it is needed.

Product Description

Solar Flood Light Product Description

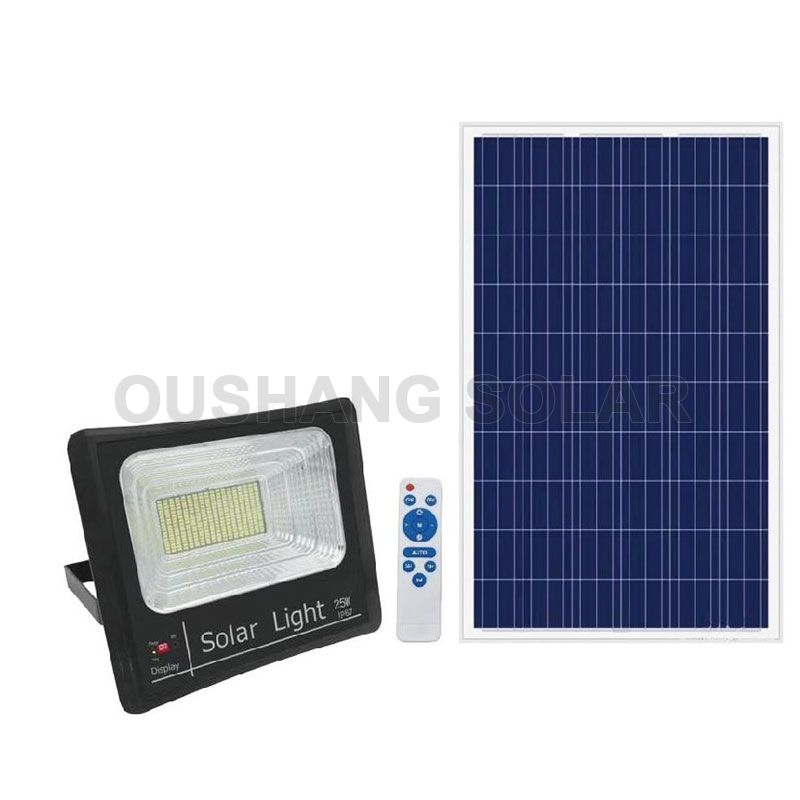

OSTGD-01 Solar Flood Light

Model

OSTGD-01-25W

OSTGD-01-40W

OSTGD-01-60W

OSTGD-01-120W

OSTGD-01-200W



Light Power

25W

40W

60W

120W

200W



Solar Panel

Poly (6V/10W)

Poly (6V/15W)

Poly (6V/18W)

Poly (12V/30W)

Poly (12V/35W)



Solar Panel Size

345*175*17mm

240*270*17mm

350*350*17mm

530*350*17mm

580*350*17mm



Battery

3.2V/6,000mA

3.2V/10,000mA

3.2V/20,000mA

6.4V/20,000mA

6.4V/30,000mA



SMT Lamp Bead

Changfang, 42 pieces

Changfang, 80 pieces

Changfang, 120 pieces

Changfang, 240 pieces

Changfang, 306 pieces



Texture

Die-casting Aluminium

Die-casting Aluminium

Die-casting Aluminium

Die-casting Aluminium

Die-casting Aluminium



Waterproof Class

IP67

IP67

IP67

IP67

IP67



Charging Time

5-6 Hours

5-6 Hours

4-5 Hours

4-5 Hours

5-8 Hours



Lighting Time

12-14 Hours

12-14 Hours

12-14 Hours

12-14 Hours

14-16 Hours



Lighting Area

80 sq.m.

100 sq.m.

120 sq.m.

150 sq.m.

200 sq.m.



Quantity per box

10 sets

8 sets

6 sets

4 sets

4 sets



Light Box Size

36*11.5*24cm

38*13*31.5cm

43*12*38cm

30.8*8.5*25.7cm

34.7*9.3*28.5cm



Packing Size per box

47*34*39cm

50*33*41.5cm

43*40*45cm

38*28*55cm

37*32*65cm



Light Size

19.1*16.0*4.7cm

22.5*19.2*6.4cm

26.6*22.1*6.3cm

30.1*25*7.6cm

34*28*8.6cm



Net Weight per Set

2.3KG

3.3KG

4.2KG

5.6KG

6.9KG



Gross Weight/Box

24KG

28KG

30.5KG

23KG

28KG



Highlights

Power Indicator + Light Control + Remote Control



OSTGD-01 Solar Flood Light

LED Chips

High-brightness chip,

low energy consumption,

long service life,

large light area.

Water Proof and durable Cable

Connect the lamp body and the solar panel,

High temperature resistance,

High hardness,

Good water resistance, and strong resistance to pressure.

OSTGD-01 Solar Flood Light
OSTGD-01 Solar Flood Light

The angle can be adjusted from 0 to 180 degrees without obstacles, and the installation is stable and convenient. It can be installed in various environments, walls, poles, etc.
