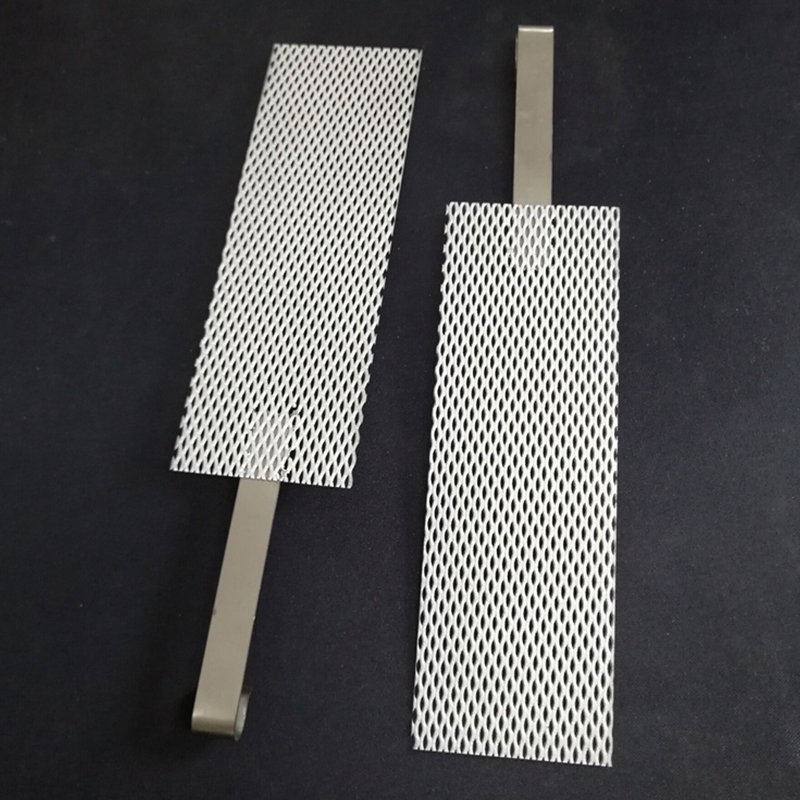

Platinized Titanium Anode

Platinized titanium anode consist of titanium anodes coated with platinum or platinum metal oxide. These anodes act as inert and non-consumable electrodes, making them very durable. In addition, they remain insoluble in the electrolyte even under the conditions present in the electrolysis process.

Platinum Plated Titanium Anode

Platinum plated titanium anode consist of titanium anodes coated with platinum or platinum metal oxide. These Platinum plated titanium anode act as inert and non-consumable electrodes, making them very durable. In addition, they remain insoluble in the electrolyte even under the conditions present in the electrolysis process.

Platinum is an ideal anode material due to its excellent electrical conductivity and low consumption rate. However, in view of its status as a precious metal, a cost-effective method of electroplating a thin layer of platinum on a highly corrosion-resistant substrate is usually employed. Titanium, known for its ability to form insulating oxide films under anodic conditions, is a commonly used anode substrate.

The special treatment process and electroplating of Giant anode The process can effectively ensure the density and uniformity of the platinum layer, and can effectively improve the service life of the electrode. It is widely used in electrolysis of functional water, small electrolysis hydrogen production equipment, precious metal plating, etc.

Platinum plated titanium anode parameters

Product surface in argentate , uniform coating, combined with the strong, low chlorine evolution and oxygen evolution potential, long service life, high current efficiency, etc.

Plating metal: 99.99% Pt

Platinum content: 22.45g/㎡/μm

Platinum thickness: 0.1～15μm

Working current: ＜15000A/㎡

Working temperature: ＜85℃

Working environment: PH: 0～14

Product shape: plate, mesh, tube, rod, customized according to customer requirements

Advantages of Platinum plated titanium anode

Good corrosion resistance: Platinum has high corrosion resistance. Platinum plating with a few micrograms of platinum can form a dense passivation film on the titanium substrate, effectively protecting the substrate and extending the service life of the electrode.

Good electroactivity: Platinum has excellent electrochemical activity and can improve the reaction rate and conversion efficiency of the electrode.

Good high temperature resistance: platinum can still maintain good stability at higher temperatures, and platinum-coated titanium anodes can work stably in high temperature environments.

Strong adsorption: Platinum has strong surface adsorption ability, which can absorb pollutants and improve anti-corrosion ability.
