Moonleds are also committed to the Human Centric Lighting, includes natural sunlight, eye protection healthy spectrum, etc.
Product Description

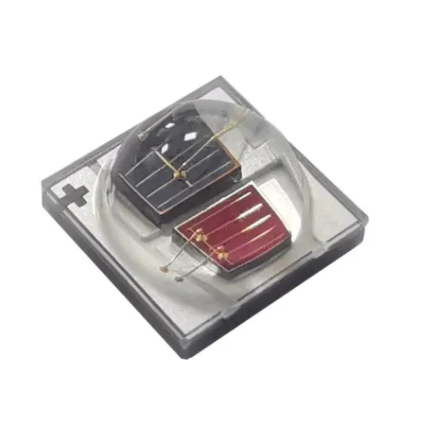

- Deep Red 660nm + Near Infrared 850nm Bicolor SMD LED
- Two wavelengths in one 3535 LED Chip
- High radiant flux intensity
- Max forward current up to 1A
- Designed for Red LED Light Therapy Panel, Red Light Therapy Device
Red Light Therapy, Deep red 660nm and Near Infrared 850nm LED
Moonleds are also committed to the Human Centric Lighting, includes natural sunlight, eye protection healthy spectrum, etc. Deep red 660nm and Near Infrared 850nm LED, two colors in one 3535 reliable package design, make the lighting design more compact, cost-saving, and much more convenient for installation.
Deep red 660nm stimulates cell repair, accelerates cell metabolism and capillary blood circulation, and relieves pain.
NIR 850nm penetrates the skin to stimulate cells in the dermis, promote metabolism, improve cell vitality and regeneration, and accelerate wound healing.
Product Features
· Bicolor 6w 3535 SMD LED
· High power compact
· 2 wavelengths 1 single package
· Ceramic base surface mount packaging
· Vertical Chip Technology, pure gold wire soldering
· High thermal conductivity
· 120° emission angle
· RoHS compliant, EN62471
· Reflow soldering available
· Life span >50000 hours
Product Application
· Red Light Therapy lamp
· Human centric lighting
Product Specification
Color | Wavelength | VF (V) |
IF (mA) |
Optical Power | Beam Angle(°) | Part Number |
Deep RED + IR |
655-665nm | 2.0-2.4 | 700 | 500-600mW | 120 | MN-S3535R6608506A |
845-855nm | 1.4-1.6 | 700 | 850-950mW |
Spectrum Data
Product Dimension
Tolerance: +/-0.1mm
