Fused Silica Domes

Product Description

Country/Region:China

City:Changchun

Product Attributes

  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Material Glass
  • - Structure Plano-concave
  • - Usage Optical
  • - Related Keywords Plano-Concave Lenses, Lenses, Concave Lenses, optics

Description by Manufacturer

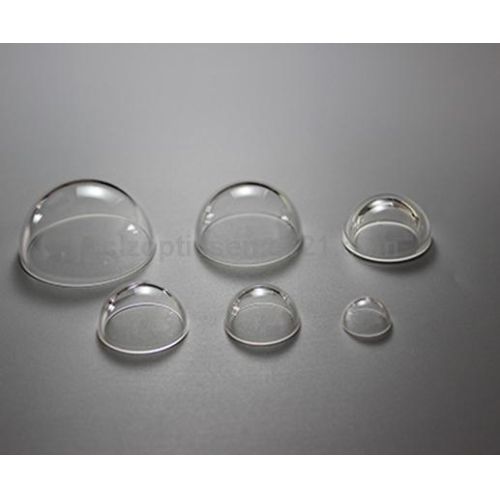

Fused Silica Domes

Fused Silica Optical Dome

UV Fused Silica Domes is a good choice in the Solar Instruments. It including ultraviolet fused silica and infrared fused silica.

For the silica, it has a good transmittance from 180nm to2650nm, then it is good choice the protected UV Radiometers.

For the IR silica, it has broadband transmission from 200nm to 3600nm, it can keep the pyranometer has a wider spectral range, improved directional response, and reduced thermal offsets.

And Fused Silica mechanical properties it better than N-BK7, Borosilicate. Some of high quality deep-sea housings is made fused silica dome, it have wide-angle and can be protective the deep-sea camera.

Optical dome are lenses with two concentric spherical surfaces. Sometimes they are being referred to as bent plan parallel plates. Consequently it is customary to define parallelism between two surfaces as the maximum thickness variation between the two surfaces.

In perfect domes the convex radius is equal to the sum of the dome thickness and concave radius, , creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows.

Fused Silica is outstandingly resistant to water, salt solutions.

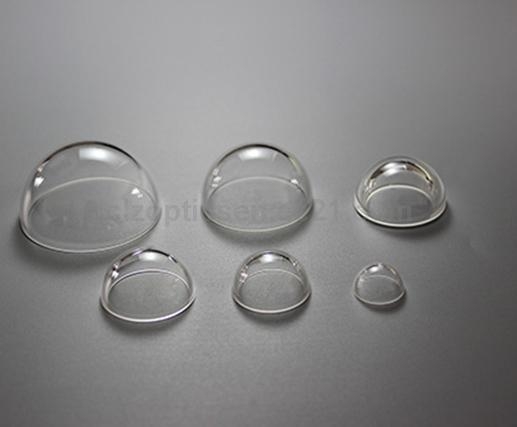

Product Image

Description by Manufacturer

Fused Silica Domes

Fused Silica Optical Dome

UV Fused Silica Domes is a good choice in the Solar Instruments. It including ultraviolet fused silica and infrared fused silica.

For the silica, it has a good transmittance from 180nm to2650nm, then it is good choice the protected UV Radiometers.

For the IR silica, it has broadband transmission from 200nm to 3600nm, it can keep the pyranometer has a wider spectral range, improved directional response, and reduced thermal offsets.

And Fused Silica mechanical properties it better than N-BK7, Borosilicate. Some of high quality deep-sea housings is made fused silica dome, it have wide-angle and can be protective the deep-sea camera.

Optical dome are lenses with two concentric spherical surfaces. Sometimes they are being referred to as bent plan parallel plates. Consequently it is customary to define parallelism between two surfaces as the maximum thickness variation between the two surfaces.

In perfect domes the convex radius is equal to the sum of the dome thickness and concave radius, , creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows.

Fused Silica is outstandingly resistant to water, salt solutions.


Custom Optical Glass Domes
