Oxygen Gas Pump

An oxygen gas pump is a device used to transfer or deliver oxygen gas from a storage container or source to another location. These pumps are designed specifically for handling oxygen, which is a critical gas used in various applications such as medical oxygen supply, industrial processes, and scientific research.

The working principle of an oxygen gas pump depends on the specific type of pump being used.

Here are two common types of oxygen gas pumps:

Reciprocating Piston Pump: This type of pump utilizes a reciprocating piston to draw in and compress the oxygen gas. The pump consists of a cylinder, a piston, and inlet and outlet valves. During the suction stroke, the piston moves away from the cylinder head, creating a vacuum that draws in oxygen gas through the inlet valve. On the compression stroke, the piston moves towards the cylinder head, compressing the gas and forcing it out through the outlet valve.

Diaphragm Pump: A diaphragm pump for oxygen gas uses a flexible diaphragm to generate the pumping action. Compressed air or a motor-driven mechanism causes the diaphragm to move back and forth, creating suction and compression cycles. When the diaphragm moves away from the pumping chamber, it creates a vacuum that draws in oxygen gas. As the diaphragm moves towards the pumping chamber, it compresses the gas and expels it through the outlet.

In both types of pumps, it is crucial to ensure the materials used in their construction are compatible with oxygen gas. Oxygen is a highly reactive gas and can pose a fire hazard if it comes into contact with certain substances, such as oil, grease, or flammable materials. Therefore, oxygen gas pumps are typically made from oxygen-compatible materials, such as stainless steel or brass, and designed to minimize the risk of contamination or ignition.

Oxygen gas pumps may also include safety features like pressure relief valves, gauges, and filtration systems to ensure the proper handling and delivery of oxygen gas. These safety measures help prevent overpressurization, monitor pressure levels, and remove impurities that could potentially affect the quality and safety of the delivered oxygen.

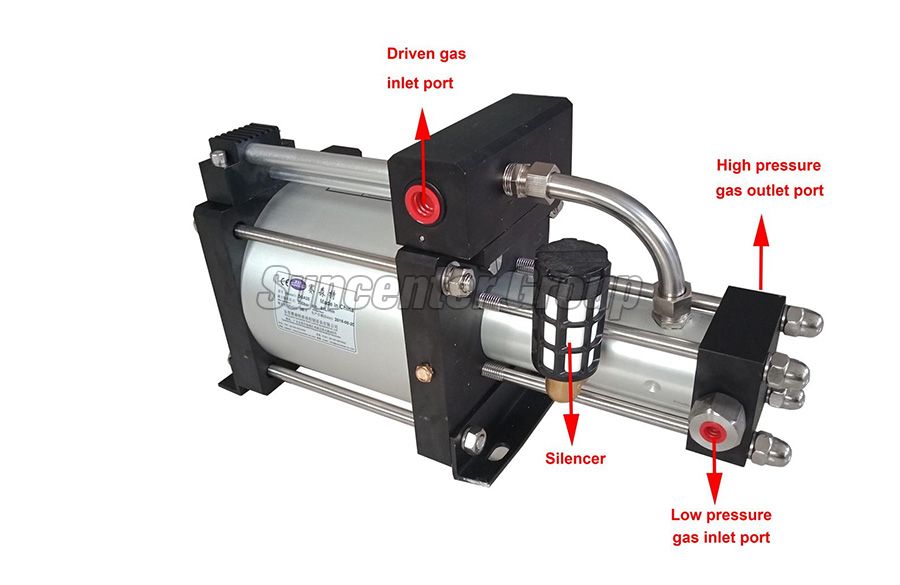

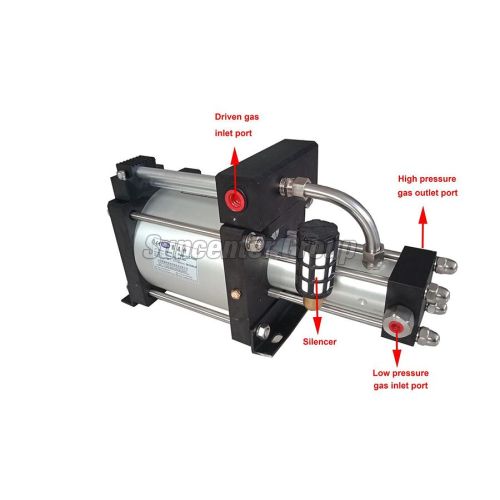

Compressed Air Driven Gas Booster Pump- DGA/DGD/DGT Series

Suncenter Air Driven Gas Boosters provide for pressures up to 80Mpa (11,600 psi). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.
