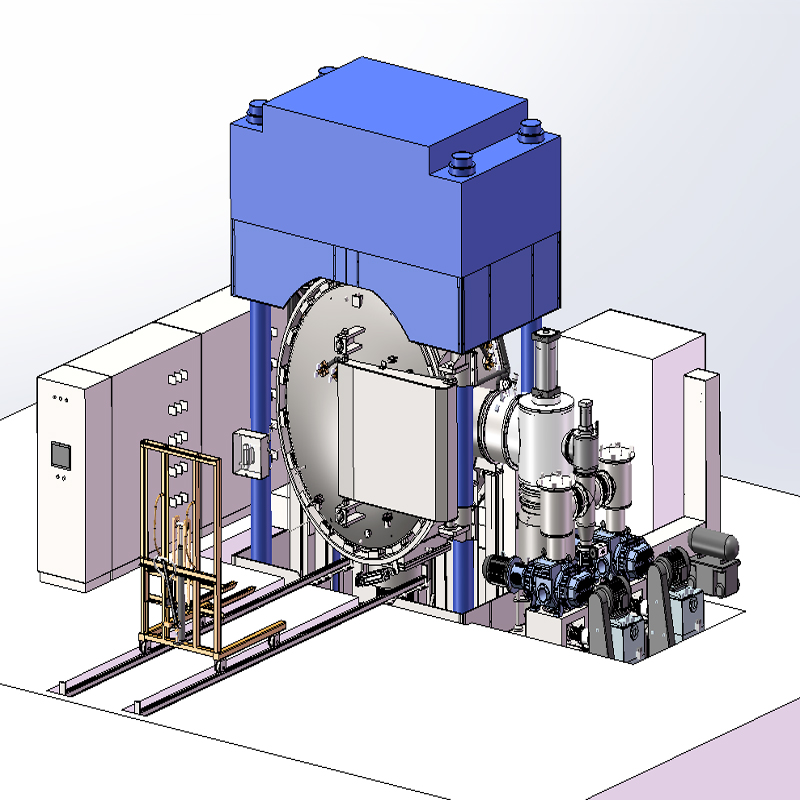

Vacuum Diffusion Bonding Furnace

Shanghai Haoyue Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales of electric furnace.

Product Description

Technical Data

1. The thyristor controller optimizes the efficiency of the heating element

2. Simple and safe process operation

3. Multi compression bar structure design, more uniform pressure distribution

4. Multi pressure sensor design can effectively measure process pressure

Specifications

model	DB-223	DB-446	DB-556	DB-666	DB-767	DB-868	DB-969	DB-10610
Effective workspace（mm)	200×200×300	400×400×600	500×500×600	600×600×600	700×600×700	800×600×800	900×600×900	1000×600×1000
Pressure tonnage	30~300	30~300	50~500	50~500	200~1000	200~1000	200~1000	200~1000
Number of indenters	Single / double	Single / double	Single / double	Single / double	Single / double/quadruple	Single / double/quadruple	Single / double/quadruple	Single / double/quadruple
maximum temperature	1300℃
Temperature uniformity	≤±5℃
Ultimate vacuum	≤6.7x10-4 Pa
Pressure rise rate	≤0.5Pa/h
Parallelism of upper and lower indenters (mm)	≤0.1
Pressure accuracy	≤±0.5%
Displacement accuracy(mm)	H±0.05
Air cooling pressure	2~10bar

Application

Vacuum diffusion welding technology is a kind of welding method, which is carried out in vacuum, and the weldments are closely bonded. Under the appropriate temperature and pressure (workpiece bonding pressure), it is maintained for a period of time, so that the atoms between the contact surfaces are diffused, so as to form a connection. Vacuum diffusion technology can be used for welding of dissimilar metals, ceramic / metal dissimilar materials, etc.
