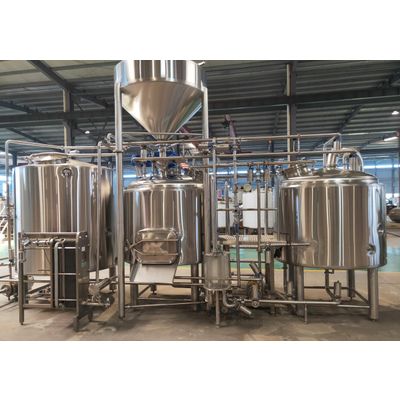

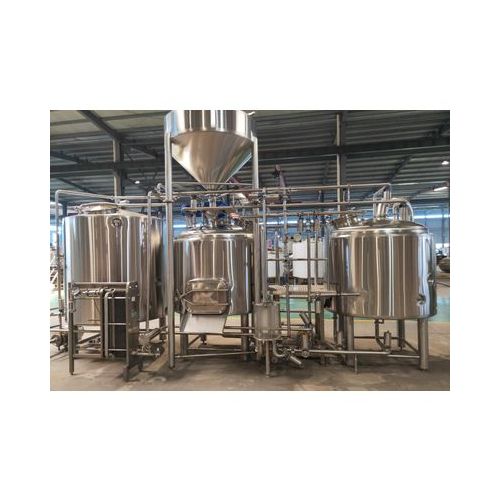

1000L Direct Fire heated stainless steel brewery equipment

1000L Direct Fire heated stainless steel brewery equipment

I.) Brief Introduction
1000L Semi-Auto Stainless Beer Machines is most typical and common system in Microbrewery, Brewpub, Bar and Restaurant etc.

For such beer machines, electric, steam and direct fire heating is optional. Electric means amount of electricity consumption per brewing day and it needs to upgrade power souce in building. Steam has best heating efficiency and effect, but it requests steam generator and pipeline as auxuliary machine, which increases budget a lot. In this case, direct fire heating becomes a better choice.

II.) Our Advantages
1.) 19 Years Experience - Design Cusgtomization

2.) 5 Years Warranty - Quality verified

3.) 1100+ Global Users - Reference available

4.) One-stop Service - Design, manufacture, install etc

5.) Competitive Price - Scale Production10HL_2vessel_brewhouse_s02

III.) Key Features
1.) Typical 2-Vessel Brewhouse, Mash/Lauter tun + Kettle/Whirlpool tun with double size Hot liquor Tank. Such brewhouse allows to brew 1-2 batches within 14 hours.

2.) Direct Fire heating guarantees vigorous heating in Kettle/Whirlpool tun and Hot Liquor Tank.

3.) Two stages heat exchanger gives prompt wort cooling within 30-40 minutes.

4.) Semi-Auto control achieves full-automatic heating and cooling. What you only need to do is to open/close butterfly valve etc. It is common in microbrewery since most of brewmaster hope to attend the brewing as much as possible.

5.) Full stainless steel 304 is sanitary to brew and is easy to maintain & Clean.

IV. ) Specifications
1.Malt Milling Unit

300-500kg/hr Malt Miller 1set
Flexible Auger 1set
Milling Controling Cabinet 1set

2. 2-Vessel/HLT Brewhouse

1000L Mash/Lauter Tun 1set
1000L Kettle/whirlpool Tun 1set
2000L Hot Liquor Tank 1set
Sanitary Centrifugal Pump 2sets
Manual Water Mixing Station 1set
25L Glass Wort Grant 1set
10m2 Heat Exchanger 1set
20L Yeast Feeder 1set

3.Fermentation Unit

2000L Fermentation Tank 4sets
2000L Brite Tank 1set

4.Glycol Chilling Unit

2000L Glycol Water Tank 1set
5hp Chiller 2sets
Glycol Water Pipeline 1set

5.Electric Control Unit

Brewhouse Control Cabinet 1set
Fermentation Control Cabinet 1set

6.Portable CIP Cart

100L Caustic Tank 1set
100L Sterilize Tank 1set
Sanitary Centrifugal Pump 1set
CIP Controling Cabinet 1set
