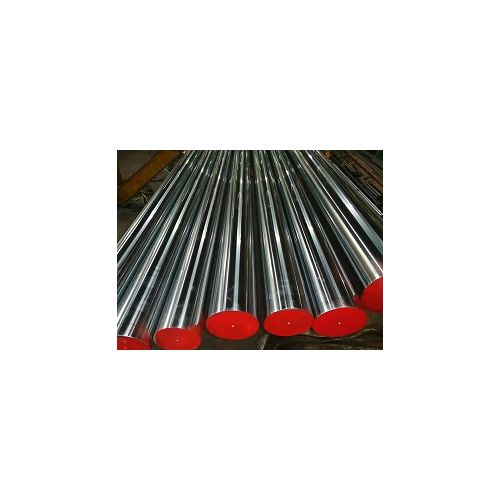

chrome plated hydraulic piston rod
Product Description
Membership：Free Member Scince Nov 24, 2022
FOB Price：1278
Min. Order Quantity：50
Supply Abillity：50000
Port：Tianjin
Payment Terms：T/T
Package：steel belts
Keyword：steel bras
Product Detail
Company Info
Quick Detail
Place of Origin
China [CN]
Model Number
GXPR01
HS-CODE
7206-10
Package & Delivery Lead Time
Package
steel belts
Detailed Description
Size: | Ø 12-140mm |
Length: | 3m -8m |
Material: | 45# DIN CK45/JIS 45C |
Tolerance | ISO f7 |
Chrome thickness: | 20~30micron |
Hardness of the chrome layer: | 850HV(min) |
Roughness: | Ra 0.2micron (max) |
Straightness: | 0.2/1000mm |
Yield Strength | ≥320 Mpa |
Tensile Strength | ≥580 Mpa |
Elongation | ≥ 15% |
Supply condition: | 1. Hard chrome plated |
2. Induction hardened | |
3. Quenched & Tempered | |
4. Induction hardened with Q&T |
Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
Ck45 | 0.42-0.50 | 0.50-0.80 | 0.04 | 0.035 | 0.035 |
|
|
ST52 | 0.22 | 1.6 | 0.55 | 0.035 | 0.04 |
|
|
20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | 0.035 | 0.035 | 0.10-0.20 |
|
42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | 0.03 | 0.03 |
| 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 |
|
|
| 0.80-1.10 |
Material | T. S N/MM2 | Y. S N/MM2 | E%(MIN) | CHARPY Product Detail Company Info Basic Company Information Hebei Gangxin Technology Co., Ltd TEL : 86-0311- 85252205 / FAX : 86-0311- 85252205 C-7 Rundushenghe Plaza, Qilian St, Huanghe Rd, Shijiazhuang, Hebei, China Hebei Shijiazhuang China [CN] Homepage : http://www.steelprocessing.cn Main Products plain shaft , bright bar , chrome plated bar , piston rod , honed tube Company Advantage Detail Company Introduction Hebei Gangxin Technology Co.,Ltd. subordinated to Wanlixin Group, is a professional manufacturer of silver steel, plain shaft and lead screw.Silver steel is also commonly known as silver material. It refers to the round steel with the characteristic of bright surface and without rolling defect and decarburized layer. Plain Shaft is also named chrome plated rod. It is a kind of bar which surface is treated through special grinding and hard chrome electroplating. Linear shaft is widely used in the automatic transmission devices, such as robot, automatic observer, computer, precision printer, all kinds of air cylinder, hydro-cylinder, piston rod, packing, woodworking, spinning, printing and dyeing machines, die-casting machine, injection molding machine, other leader, mandril and so on. Meantime, due to its hardness, it can prolong the service life of common precision mechanical devices. Lead screw is an ideal product that can transfer rotational motion into linear motion or linear motion into rotational motion. Due to its small fractional resistance, lead screw is widely used in all kinds of industrial equipment and precision instrument. Lead screw is the most commonly-used driving element in the toolroom machine and precision mechanic with the feature of high precision, reciprocity and high efficiency. Our company is also equipped with sophisticated testing equipment to ensure the reliability and stability of our product performance. Our company pursues the management policy of “taking talented person at first, ensuring quality through science and technology, striving for the survival by the quality, promoting development through innovation", adheres to the management idea of “promoting development by stable quality, increasing benefit by reducing the cost” and carries forward the enterprise spirit of “integrity, dedication, and progressive”. With bold innovation, new technology, new materials, new techniques, new methods are applied to ensure product quality. It is always our objective of “everything will meet the customers”. We will constantly learn and improve, always offer first-rate products and high-quality service to customers. Factory Information Factory Location China [CN] Factory Address C-7 Rundushenghe Plaza, Qilian St, Huanghe Rd, Shijiazhuang, Hebei, China Factory Size 5,000-10,000 square meters , Above 50 People No. of R & D Staff 31-40 People No. of Production Lines 4 Annual Output Value US $5 Million - US $10 Million Trade Information Total Annual Sales Volume US $10 Million - US $50 Million Export Percentage 41% - 50% Accepted Delivery Terms FOB , CFR , CIF , EXW Accepted Payment Currency USD Accepted Payment Type T/T , L/C , Western Union
