Reducing Tee Equal Fig 130R NPT/BSP GALVANIZED
Reducing Tee Equal Fig 130R NPT/BSP GALVANIZED
Product Description

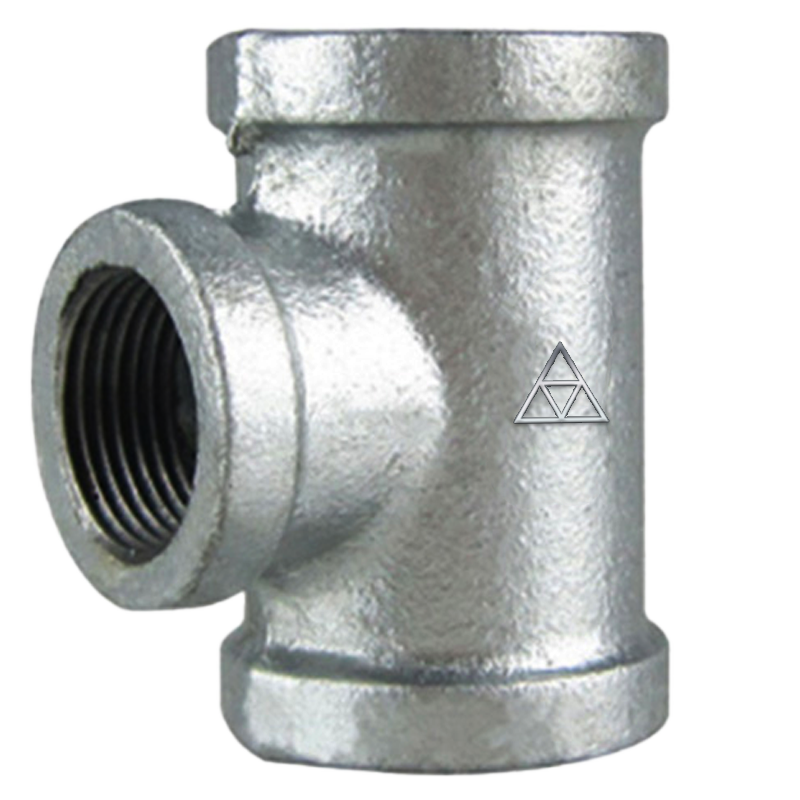

Malleable iron pipe fittings: Reducing Tee Equal Fig 130R NPT/BSP GALVANIZED
Type: Reducing Tee
Size: 1/4*3/8”---6*5”
Galvanized/Black Malleable Iron Pipe Fittings Standard Specification
| Standard | American Class 150 | Brithish Standard | European |
| ANSI/ASME B 16.3 | |||
| Dimention | ANSI/ASME B 16.14 | KSB 1531 | EN 10242 |
| ANSI/ASME B 16.39 | |||
| Threads | ANSI/ASME B1.20.1 | BS 21 | ISO 7-1 |
| BS 2779 | ISO 228-1 | ||
| Material | ASTM A-197 | BS EN 1562 | EN1562 |
| Zinc Coating | ASTM A-153 | BS 143&1256 | EN10242 |
| Reinforcement | Banded | Banded | Beaded |
Threaded Standard: BS / NPT/DIN
Surface: Hot dipped galvanized, Toast galvanized, Black
Usage: Fire Protection (Fire Fighting), plumbing, infrastructure construction, decoration, etc.
Tensile Strength: ≥33 KG/MM2
Elongation: ≥8%
Hydness: ＜HB163
Hydraulic Test Pressure: 25 KG/MM2
Working Pressure: 16 KG/MM2
Packing: Carton/ Bags /Pallet
Delivery: 45 days after the payment
Payment: TT, LC, etc.
