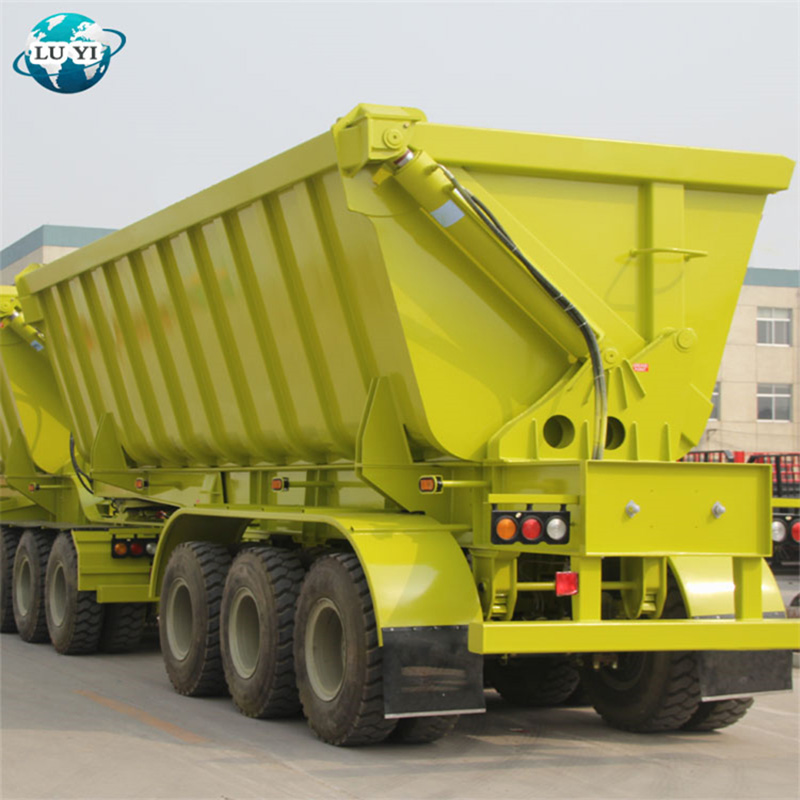

Superlink Dump Side Tipper Trailer
Superlink Dump Side Tipper Trailer
Product Description
Side tipper semi trailer is another type of dump trailer, and It allows the cargo to be unloaded from the side. The goods transported by this side tipper trailer are mainly construction materials, such as stones and sand.
Product details
|
|
|
|
|
Frame body adopts Q345B high-strength structural steel, and the beam and other cross-section main truss adopt automatic submerged arc welding structure, which has the best bearing effect. |
Well-known brand axles and suspension systems have high performance and reliable use, ensuring good performance of the vehicle. |
LUYI side tipper trailer adopts HYVA cylinder, which is more reliable and safer. We offer dump truck semi-trailers and a variety of customization options. |
Side tipper trailer parameter
|
Lifting Type |
Bottom lifting(Tipper Two sides) |
|
Lifting System |
Oil lifting Cylinder |
|
Axle |
2 axles |
|
Suspension system |
Mechanical Suspension |
|
Steel Spring |
10/10/10 pieces per axle |
|
Frame |
upper plate thickness is 14mm, middle plate thickness is double 8mm, down plate thickness is 16mm; Material is Q345B Carbon Steel. |
|
Tire Type |
12.00R22.5 |
|
Load capacity |
40 ton *3 |
|
Rim |
9.00*22.5 |
|
Traction Pin |
2" or 3.5" traction Kingpin |
|
Spare Wheel Bracket |
1 sets(Patent type) |
|
Tool Box |
1 sets(waterproof type) |
|
Landing Leg |
YAHUA brand 28T Double speed |
|
Brake system |
6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
|
One piece of 45L air tanks |
|
|
Brake air chamber |
Six double chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, |
|
|
side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Painting |
Sandblasting, rust prevention, two primer, two finish |
|
Packing |
Polish with wax before shipping |
Side tipper trailer features
Material:
Hardox 450 or equivalent wear-resistant box, T700 high tensile beam, tare weight 2000kg lighter than ordinary material dump truck, longer service life, lower fuel consumption
U section of the box:
U-shaped box design and analysis, larger cross-sectional area, lower center of gravity, loading more, unloading easier, safe, efficient
Chassis:
Main beam double web design, more strong multi - road conditions
Cylinder:
FC and FE models are available, and higher working pressure , reducing turnaround time with faster soil turning speed, and increasing operating time with longer maintenance intervals
Parentheses:
Improved design, with better compressive and fatigue resistance
Abortion:
Ruggedly designed precise drive protection box works at a safe Angle
Inclined shaft:
Heavy duty design supports stable work when tilting, more durable and safe
Auxiliary support frame:
The auxiliary support frame with chassis supports the box body to avoid tilting the box body and make the work safer
For detailed information about side tipper trailer for sale, please feel free to contact us!
