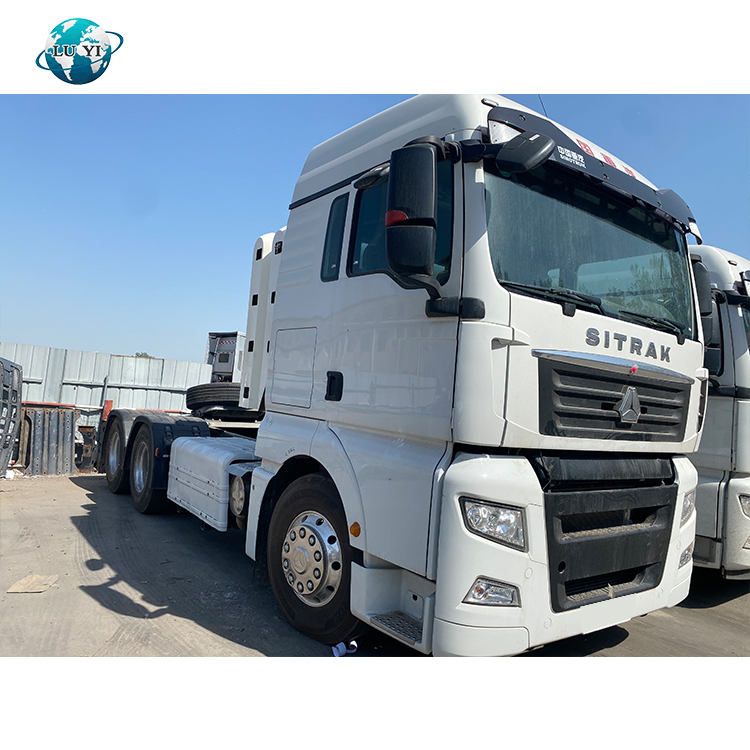

SITRAK CNG Tractor Truck

SITRAK CNG Tractor Truck

Product Description

SINOTRUK Man Technology SITRAK C7H 6X4 460hp CNG Tractor Truck in Uzbekistan

CNG refers to compressed natural gas, compared with diesel engines, CNG 460hp tractor truck equipped with CNG engine can reduce the greenhouse gas (GHG) emissions of up to 20%. Luyi is professional CNG tractor truck supplier, dump truck models include: sinotruck HOWO 336hp, 371hp, 420hp. Welcome to select your interested truck heads and contact us for detailed information!

Parameter

Product Name

SINOTRUK New Model Man Technology SITRAK C7H 6X4 430hp Tractor Truck

Chassis Model

ZZ4256V324HC1B

Driving Type

LHD (RHD is optional)

Cabin

C7G

Engine

MC11.43-30 430HP Euro 3

Transmission

ZF16S2230TO for 440/430PS
16 speed manual control aluminum
synchronizer Gearbox.
Ratios:1-13.80,2-11.54,3-9.49,4-7.93,5-6.53,6-5.46,7-4.57,8-3.82,9-3.02,10-2.53,11-2.08,12-1.74,13-1.43,14-1.20,15-1.00,16-0.84,R1-12.92,R2-10.80

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGSPressed axle housing, central single reduction with hub reduction,with differential locks between wheels and
axles.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

315/80R22.5, tubeless tyres with one spare tyre

Fuel Tank

600L

Fifth Wheel

90# or 50 #

Overall Dimension

7000*2550*3100mm
