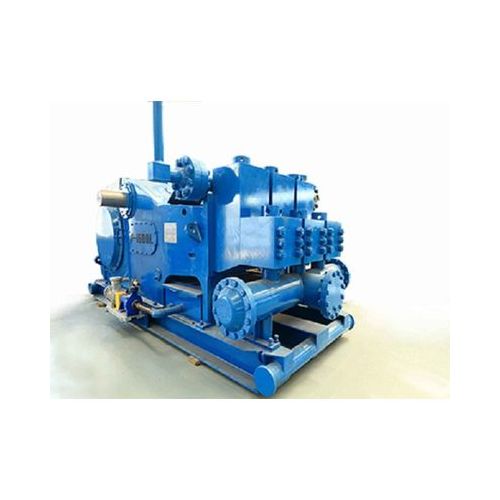

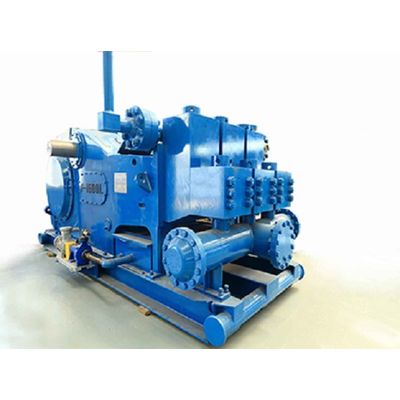

F-1600HL High Pressure Mud Pump
Product Description
Payments：T/T
Delivery：Customized is generally 30 days
Origin：Shandong,China
Packing：Export that standard wooden or iron case
Inspection：-
Features:
F1600HL Triplex high pressure mud pump has a max. working pressure of 7,5000PSI and a displacement of 46.5L/S with 6" mud pump liner size. It belongs to high pressure pump. This model is the first choice for the medium and deep drilling rig. The F1600 triplex has a max working pressure of 5,000 PSI and a displacement of 46.5L/S with 7" liner size.
F-1600HL high pressure mud pump liner specifications
Model | F-1600HL |
Max. Liner size*stroke | 190*305(7-1/2*12) |
Stroke Rating r/min | 120 |
Power Rating, kw(HP) | 1176(1600) |
Gear Type | Herringbone |
Gear Ratio | 4.31:1 |
Lubricatiing | Forced and splashing |
Discharge Outlet Flange | 1300mm(5”) Flange 10000 psi 70MPA |
Discharge flange size: | 130mm (5-1/8”) |
Work pressure | 3350 psi (23.1 Mpa)-7500psi (51.7 Mpa) |
Valve pots | L type, API 7# |
Valve box static pressure test: | 77.6Mpa (11200 psi) |
Approx. Weight (KG) | 32,000KG |
Overall dimensions (mm) | 5200*2500*2000mm |
