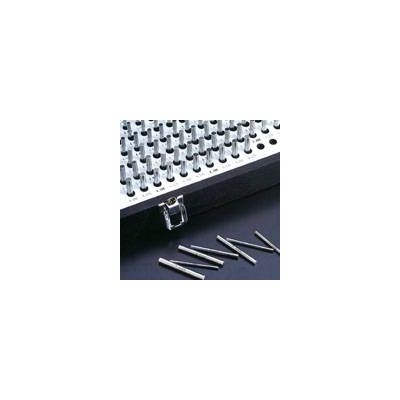

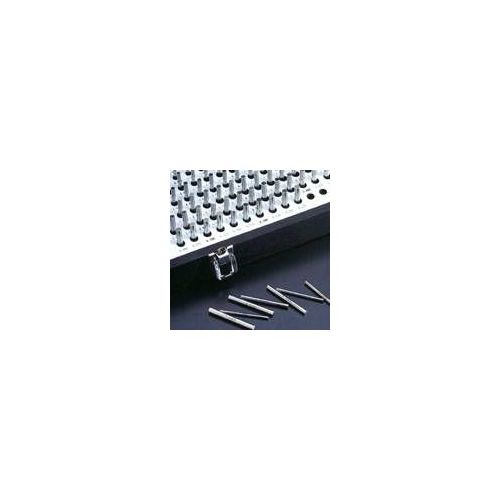

Pin Gauge set

Product Description

Plain Plug Gages Class ZZ

0.002mm, 0.001mm, 0.0005mm





Model(minus) Model(plus) Range No. of gages



GP-M0M GP-M0P 0.011\" to 0.060\" 50



GP-M1M GP-M1P 0.061\" to 0.250\" 190



GP-M2M GP-M2P 0.251\" to 0.500\" 250



GP-M3M GP-M3P 0.501\" to 0.625\" 125



GP-M4M GP-M4P 0.626\" to 0.750\" 125



GP-M5M GP-M0P 0.751\" to 0.832\" 82



GP-M6M GP-M1P 0.833\" to 0.916\" 84



GP-M7M GP-M2P 0.917\" to 1.000\" 84



when you order pins gauge set,just tell us size,Minus or plus.







Plain Plug Gages Library Series





Model(plus) Model(minus) Range No. of gages



INCH LIBRARY SERIES



GPS-M1-2p GPS-M1-2M 0.061\"to.500\" 440



GPS-M1-4p GPS-M1-4M 0.061\"to.750\" 690



GPS-M1-7p GPS-M1-7M 0.061\"to1.000\" 940











Plain Plug Gages DIN 2269



Features:

Go(Plus) or No-Go(Minus)



Gcr15 Steel : 60/62 HRC



Accuracy : \u00b10.002mm, \u00b10.001mm or\u00b10.0005mm



50mm Long





Uses:



Checking locations



Measuring hole sizes and depths



Go and No-Go gauging



Setting micrometers.



Checking distances between holes.











Model No. Range Step No. of gages

GM-00 0.30-1.00mm 0.01mm 71

GM-01 1.01-2.00mm 0.01mm 100

GM-02 2.01-3.00mm 0.01mm 100

GM-03 3.01-4.00mm 0.01mm 100

GM-04 4.01-5.00mm 0.01mm 100

GM-05 5.01-6.00mm 0.01mm 100

GM-06 6.01-7.00mm 0.01mm 100

GM-07 7.01-8.00mm 0.01mm 100

GM-08 8.01-9.00mm 0.01mm 100

GM-09 9.01-10.00mm 0.01mm 100



GM-10 0.30-2.00mm 0.02mm 86

GM-11 2.02-4.00mm 0.02mm 100

GM-12 4.02-6.00mm 0.02mm 100

GM-13 6.02-8.00mm 0.02mm 100

GM-14 8.02-10.00mm 0.02mm 100

GM-15 1.02-3.00mm 0.02mm 100

GM-16 3.02-5.00mm 0.02mm 100

GM-17 5.02-7.00mm 0.02mm 100

GM-18 7.02-9.00mm 0.02mm 100

GM-19 9.02-11.00mm 0.02mm 100



GM-20 10.01-11.00mm 0.01mm 100

GM-21 11.01-12.00mm 0.01mm 100
