Roll Shutter Door Roll Forming Machine/Roller Shutter/Rolling Slats

Specifications

rolling shutter door machine
deociler-forming-cutting
any shape as you want
Best price best quality
Delivery time 30 days

Roll Shutter Door Roll Forming Machine/Roller Shutter/Rolling Slats

Our Factory

Our Credit

1.The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---cutting---product to stand

2.Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3.Technical parameters

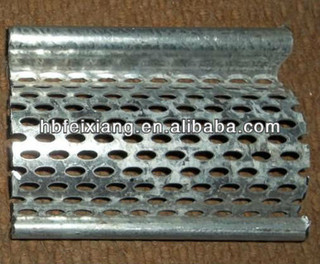

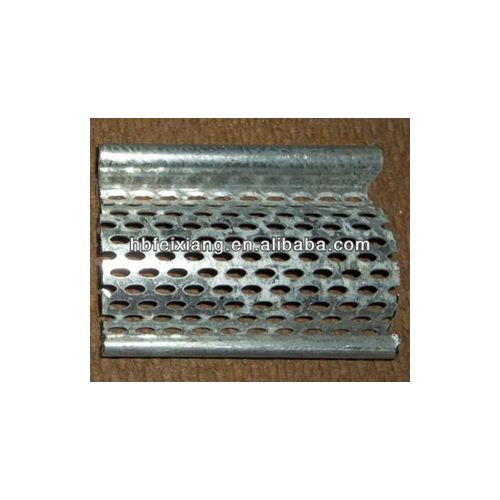

1)Profile

thickness:0.3--0.8mm

2)inner tight decoiler

A.coil inner diameter:450mm--550mm

B.max width of coiling:300mm

C.max weight of loading:5000kg

3)main forming machine

A.Shaft material:45# steel,bearing steel outer diameter 85mm

B.Main motor power:5.5kw

C.Forming speed:8--10m/min

D.Voltage:380v,50hz

E.Roller station:15

Type 1:

Type 2:

Type 3:

4)cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no

5)control system

A.PLC: taida form Taiwan

B.Coder:from south korea

6)hydraulic system

A.advanced hydraulic system from taiwan

B.Power:3kw

4.Spare Parts

1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2).Rubber mat 1 pcs;

3).Bolt spanner 1 pcs

Terms:

1.Delivery:in stock

2.Package:export standard package for container

3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)

4.Delivery date:within 30 working days after receiving deposit

5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
