SAE 100 R15

Wrapped cover/ Smooth cover

Inner tube: Excellent oil 、High temperature resistant rubber.

Reinforcement: 4 or 6 layers of high tensile copper-coated steel wire Spiral.

Cover: Abrasion and anti-aging synthetic rubber.

Temperature range: -40℃ to +125℃.

Application: For the delivery of petroleum based hydraulic oil.

SAE 100 R15

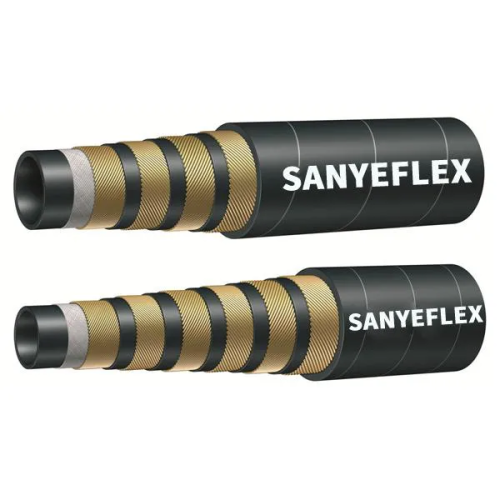

SAE 100 R15 Steel Wire Spiral Hydraulic Hose is very popular in high pressure working conditions and is suitable for petroleum based hydraulic oils. It consists of three parts: tube, reinforcement layer and outer layer. The tube is made of black oil resistant synthetic rubber, which makes the hose widely used for conveying petroleum based hydraulic oils. The reinforcement layer is made of multiple layers of high tensile, high strength thick spiral steel wires alternating, which makes the hose have very high working pressure. The outer layer is made of high quality synthetic rubber, which makes the hose resistant to abrasion, corrosion, weathering, ozone, aging and cutting.

APPLICATIONS

Harvesting equipment

Logging equipment

Injection molding machines

Mobile construction equipment

Hydrostatic drives

Oilfield equipment
