Industrial Vanilla Extraction Machine
Product Description
Min Order Quantity：1 Set
Supply Ability：100 Sets per year
Port：Ningbo
Delivery Lead Time：60 days for OEM
Country/Region：China
City：Wenzhou
Product Attributes
- - Model Number Industrial Vanilla Extraction Machine
- - Place of Origin China
- - Supply Type customization
- - Condition New
- - Color Silver
- - Volume (L) 750
- - Tank design pressure (MPa) 0.09
- - Mezzanine design pressure (MPa) 0.3
- - Feed port diameter (mm) 150
- - Heating area (square meter) 2.0
- - Condensation area(square meter) 3
- - Cooling area (square meter) 0.5
- - After-sales Service Provided yes
- - Certification CE
- - Related Keywords Extraction Machine, Vanilla Extraction
Description by Manufacturer
Application
Products Description
Herb Extraction
Put the medicinal materials to be extracted into the extraction tank, and add a certain proportion of solvents such as water,ethanol, methanol, acetone, etc. according to the production process (add it according to the process). For the extraction of the original medicine, the extraction temperature can be set according to actual needs. The extraction is carried out according to the production process. After the extraction is completed, the pipeline valves are opened in sequence, and the liquid is pumped into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during the concentration passes through the condenser and cooler to become the condensate and return to the extraction tank as a new solvent. Add the new solvent to the medicine. From top to bottom, through the medicinal material layer to the bottom of the extraction tank, the soluble components in the medicinal material are dissolved in the solvent in the extraction tank, and sent to the extraction tank as a new solvent, forming a new solvent and refluxing extraction until it is completely dissolved (the extract is colorless) and the concentration continues. ,Until it is concentrated into the required specific gravity ointment, the colorless liquid in the extraction tank can be reused next time.
Equipment advantages:
Equipment advantages:
●Intelligent: PLC control extraction and separation pressure and temperature and other parameters, operating interface is intuitive and convenient;
● High pressure: The design pressure of the extractor is 55 MPa, and the working pressure is 50 MPa;
● Safety: With hardware security protection measures, and software system has the function when overpressure the pump will be stopped ;
● Convenience: Extractor clamp quick-opening structure, and use an electric hoist to lift seal plug and loading barrel;
● Energy conservation: CO2 can be recycled, and the CO2 in the extractor and cylinder can be recover lower than 0.8 MPa;
● High efficiency: Optimize extraction process, the capacity can be increased more than 50 %.
● High pressure: The design pressure of the extractor is 55 MPa, and the working pressure is 50 MPa;
● Safety: With hardware security protection measures, and software system has the function when overpressure the pump will be stopped ;
● Convenience: Extractor clamp quick-opening structure, and use an electric hoist to lift seal plug and loading barrel;
● Energy conservation: CO2 can be recycled, and the CO2 in the extractor and cylinder can be recover lower than 0.8 MPa;
● High efficiency: Optimize extraction process, the capacity can be increased more than 50 %.
Accessories:
Accessories:
The tank is equipped with CIP cleaning automatic rotating spray ball, temperature gauge, pressure gauge, explosion-proof sightglass lamp, sight glass, quick opening feeding port, etc., to ensure easy operation and meet GMP standards. The inner cylinder of the equipment is made of 304 and 316L.
Application
Extraction Machine Range of Application:
Extraction Machine Range of Application:

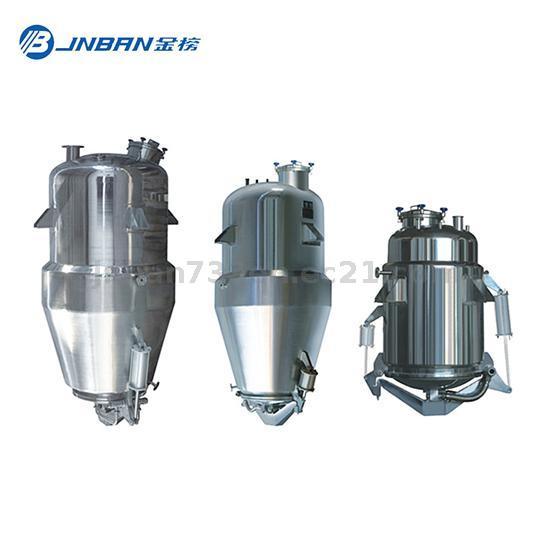

JNBAN Multifunctional Extracting Tank suitable for engineering operations of plants,animals, such as atmospheric pressure,pressurized water decoction, warm immersion, heat reflux, forced circulation, seepage, aromatic oil extraction andorganic solvent recovery in pharmaceutical,biological, chemical, food, beverage and other industries. It is better to use dynamic extraction or counter current extraction, short time and high liquid content.
Product Paramenters
Successful Project
FAQ
Q1：What Factors Affect The Quality Of Plant Extract From Plant Extraction Machine?
The quality of the plant extract may directly or indirectly be proportional to the following factors:
●Raw material; Pay specific attention to the variety of the plant because even the slightest variation could shift the extract quality.Even the particular plant variety would be affected by climatic conditions, geographical locations, cultivations, and so on.
Unluckily, finding the balance between the specific needs is quite challenging.As such, we are guaranteeing quality with the raw materials is hectic.
●Quality of the solvent; Having the best choice solvent would result in high-quality extract and vice versa.
The quality of the plant extract may directly or indirectly be proportional to the following factors:
●Raw material; Pay specific attention to the variety of the plant because even the slightest variation could shift the extract quality.Even the particular plant variety would be affected by climatic conditions, geographical locations, cultivations, and so on.
Unluckily, finding the balance between the specific needs is quite challenging.As such, we are guaranteeing quality with the raw materials is hectic.
●Quality of the solvent; Having the best choice solvent would result in high-quality extract and vice versa.
●Selected plant extraction machine; The operating principle and operation hugely determine the quality level of the extract.
So you have to pay attention to the machine specification.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Vacuum Belt Dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
So you have to pay attention to the machine specification.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Vacuum Belt Dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
Company Profile
Certifications
Certificates
- - CE TPZJ19041517707
Price
- Price US$ \ 15380 ~ 23070 / Set
Packaging & Shipping
- - Packaging Size1100 x 210 x 900 ( Centimeters)
- - Package Weight 3300 ( Kilograms )
- - Delivery Lead Time60 days for OEM
- - Minimum Order 1 Set
- - Supply Ability100 Sets per year
- - Delivery PortNingbo
- - Shipping Career
