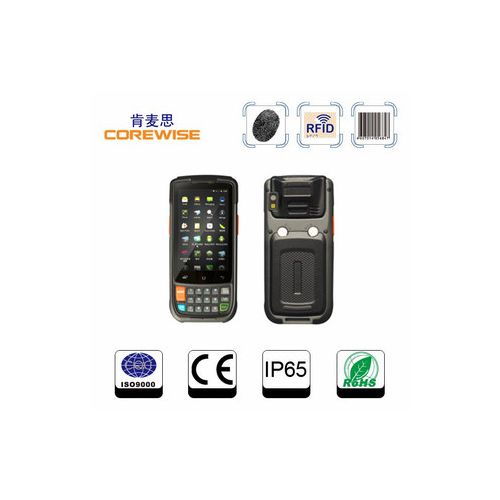

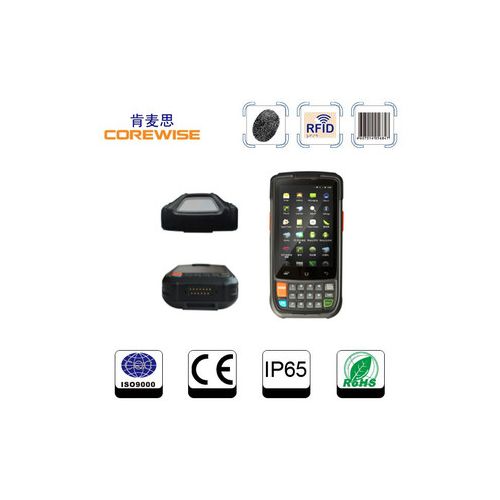

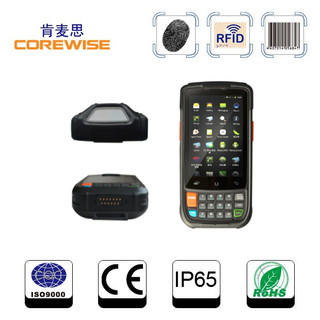

handheld 3G wireless IP65 rugged NFC reader--CFON610

Physical

Dimensions

155 *70*24 mm

Weight

280g

Performance

OS

Google Android 4.1

CPU

Qualcomm Quad Core 1.2Ghz

Memory

8GB ROM + 1GB RAM

WCDMA

GSM:850/900/1800/1900 MHz

UMTS/HSPA+: 850/900/1900/2100 MHz

HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps

EDGE Class 12 : DL 237 kbps, UL: 237 kbps

GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps

CDMA 2000

CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A

Supports BC0 (800MHz band), BC1 (1900MHz band)

CDMA2000 1X: UL/DL: 153.6 kbps

CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps

CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps

Screen

4.0” WVGA, resolution 480x800, capacitive touch screen

Camera

5.0M, auto focus

GPS

AGPS supported, 10m

WIFI

IEEE 802.11b/g/n

Bluetooth

BT IEEE802.15 Class2 .1 EDR

RFID

13.56Mhz, ISO14443, ISO15693

NFC

NFC Supported

P-SAM

1 x

1D Barcode

Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded

2D Barcode (CMOS)

1D Symbologies：UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes

2D Symbologies：PDF417、MicroPDF417、Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Postal Codes：U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Other Indices

Storage

Micro SD up to 32G, 1 x SIM

Battery

3.8V, 3800mAh

USB

Mini-USB

Charger

POGO PIN seat charger (cradle)

Earphone

Supported, 3.5mm

Certificates

CCC，CE，RoHS

Ruggedness

IP65, 1.5m drop resistance

MTBF

MTBF no less than 5000 hours

Environment

Temperature

-10℃～+50℃

Humidity

5% ～ 95%

Pressure

86Kpa～110Kpa
