Home > Security & Protection > Security Services > High Quality X-Ray Scanner Machine 5030 Mini Size

High Quality X-Ray Scanner Machine 5030 Mini Size

Product Description

Min Order Quantity:1 Piece

Country/Region:China

City:Shenzhen

Product Attributes

  • - Model Number LD-5030AM
  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Color White
  • - Related Keywords X-ray Security Inspection, X Ray Inspection Machine, X-ray Baggage Scanner

Description by Manufacturer

Basic parameters:

Model No.: LD-5030AM

Brand: CYL

Working voltage: 220V

Tunner size 500 (wide) x 300 (H) mm

Conveyor speed: 0.22m/s (adjustable)

Conveyor max load: 150 kg

Penetration: 10 mm steel panel

Film safety: ISO1600

Dose per each inspection: < 1.5 uGy

Leakage dose :< 0.05 Gy/h

Max power consumption:0.46 KVA

Noise level :< 60dB

Windows system with multilingual operation system

Energy saving design

Emergency stop button

Product size: 130(L) x72(W) x110(H) cm

Transport Package: Wooden

Package Wooden Size: 140(L) x80(W) x120(H) cm

Place of Origin: Shenzhen, China

HS Code: 9022191090

Use environment temperature and humidity: 0 to 45 degree Celsius/20% ~ 95% (not condensed)

Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not condensed)

X ray generator:

X-ray sensor: L-style photodiode array (single energetic) detector, 12 bit depth.

Generate direct: from bottom

Tube current: 0.4~1.2mA (adjustable)

Tube voltage: 80-100 KV (adjustable)

X-ray beam divergence angle: 60 degrees

Cooling style: 100% oil cooling

Image System

19 inch display screen with high resolution

Color image display 24 bit true color

Image enhancement to make detail more clearly

High/Low penetration to improve the area contrast

Real-time curve,Image reback and recover funtion

Image storage:save any images and processing continuous

Certification

CE,RoHS, FCC,ISO19001, ISO14001

Some clients example case

Changchun Museum

Guangzhou Art Museum

Express company and hotel

Shenzhen New Yaoshi Concert

The 2nd Shenzhen International Marathon

Internation market areas

Our products also used overseas such as Africa, Southeast Asia, Mideast, Europe and South America.


Price

  • Price US$ 2300 / Piece

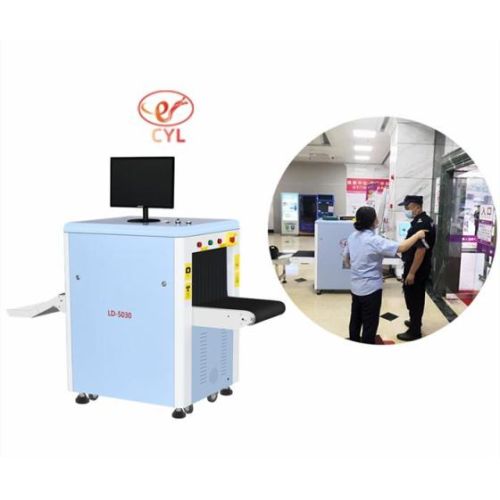

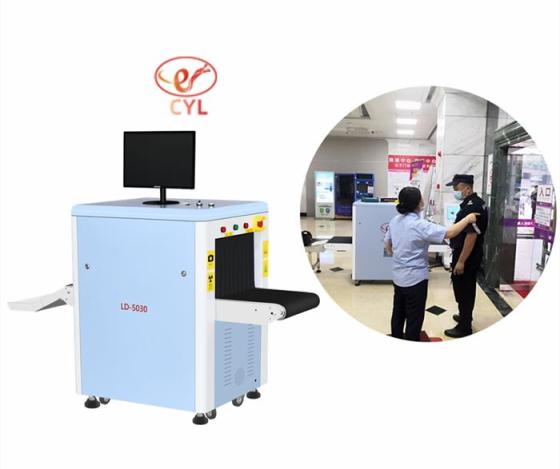

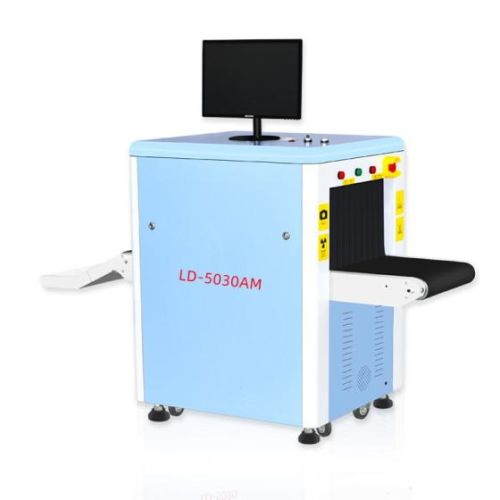

Product Image

1
2

Description by Manufacturer

Basic parameters:

Model No.: LD-5030AM

Brand: CYL

Working voltage: 220V

Tunner size 500 (wide) x 300 (H) mm

Conveyor speed: 0.22m/s (adjustable)

Conveyor max load: 150 kg

Penetration: 10 mm steel panel

Film safety: ISO1600

Dose per each inspection: < 1.5 uGy

Leakage dose :< 0.05 Gy/h

Max power consumption:0.46 KVA

Noise level :< 60dB

Windows system with multilingual operation system

Energy saving design

Emergency stop button

Product size: 130(L) x72(W) x110(H) cm

Transport Package: Wooden

Package Wooden Size: 140(L) x80(W) x120(H) cm

Place of Origin: Shenzhen, China

HS Code: 9022191090

Use environment temperature and humidity: 0 to 45 degree Celsius/20% ~ 95% (not condensed)

Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not condensed)

X ray generator:

X-ray sensor: L-style photodiode array (single energetic) detector, 12 bit depth.

Generate direct: from bottom

Tube current: 0.4~1.2mA (adjustable)

Tube voltage: 80-100 KV (adjustable)

X-ray beam divergence angle: 60 degrees

Cooling style: 100% oil cooling

Image System

19 inch display screen with high resolution

Color image display 24 bit true color

Image enhancement to make detail more clearly

High/Low penetration to improve the area contrast

Real-time curve,Image reback and recover funtion

Image storage:save any images and processing continuous

Certification

CE,RoHS, FCC,ISO19001, ISO14001

Some clients example case

Changchun Museum

Guangzhou Art Museum

Express company and hotel

Shenzhen New Yaoshi Concert

The 2nd Shenzhen International Marathon

Internation market areas

Our products also used overseas such as Africa, Southeast Asia, Mideast, Europe and South America.


Price

  • Price US$ 2300 / Piece
