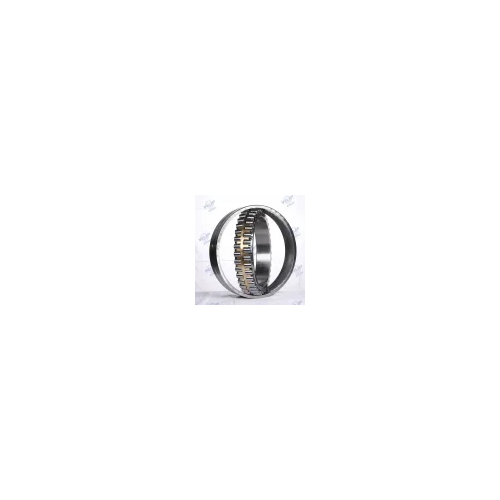

Spherical Roller Bearings

Spherical Roller Bearings Suited for applications involving large radial loads, heavy loads, and impact loads.WBJF provides a variety of spherical roller bearings types and models, please contact us for specific information.

Product Description

Product Description

Spherical Roller Bearings are a type of roller bearing that can support heavy radial loads and moderate axial loads in both directions. They have two rows of barrel-shaped rollers that run on a common spherical outer raceway. This design allows for self-alignment and reduces the risk of misalignment, which can lead to premature bearing failure. Spherical Roller Bearings are commonly used in applications where there are heavy loads, high speeds, and misalignment, such as in mining, construction, and paper mills.

Types of spherical roller bearings

Types of Spherical Roller Bearings:

There are several types of Spherical Roller Bearings available, each with unique features and benefits. The following chart provides a detailed analysis and summary of the different types:

Type of Spherical Roller Bearings Features and Benefits
Standard Spherical Roller Bearings

• Suitable for moderate radial loads and light axial loads

• Can accommodate misalignment up to 2 degrees

• Available in bore sizes ranging from 20mm to 200mm

E-Type Spherical Roller Bearings

• Enhanced design for improved load capacity and longer service life

• Can accommodate misalignment up to 3 degrees

• Available in bore sizes ranging from 25mm to 200mm

CC-Type Spherical Roller Bearings

• Features a one-piece steel cage for improved durability and reduced heat generation

• Can accommodate misalignment up to 2 degrees

• Available in bore sizes ranging from 20mm to 300mm

CA-Type Spherical Roller Bearings

• Features a one-piece brass cage for improved lubrication and reduced heat generation

• Can accommodate misalignment up to 2 degrees

• Available in bore sizes ranging from 20mm to 560mm

MB-Type Spherical Roller Bearings

• Features a two-piece brass cage for improved durability and reduced heat generation

• Can accommodate misalignment up to 2 degrees

• Available in bore sizes ranging from 20mm to 530mm

Spherical Roller Thrust Bearings

• Designed to support heavy axial loads

• Can accommodate misalignment up to 2.5 degrees

• Available in bore sizes ranging from 60mm to 560mm

Structures:

CC spherical roller bearing,CA spherical roller bearing,MB spherical roller bearing

Spherical Roller Bearings

Spherical Roller Bearings are a versatile type of bearing that can accommodate heavy loads and misalignment. With various types available, selecting the appropriate Spherical Roller Bearing for a specific application requires careful consideration of factors such as load type, speed, and misalignment.



Spherical Roller Bearings Features

1. Self-aligning

2. The bearing automatically compensates for deviation in the shaft center and bending in the housing or shaft, preventing excessive force from being applied to it.

3. Support for all types of loads

4. Spherical roller bearings sustain radial loads, axial loads in both directions, and combined loads.

5. For fixed-end or free-end



Applications of Spherical Roller Bearings

1. High load capacity

2. Suited for applications involving large radial loads, heavy loads, and impact loads

3. Mining equipment (powdering machines, vibrating screens, conveyors, etc.), gearboxes, air preheaters, extruders, centrifugal separators, construction machinery, steelmaking machinery, papermaking machines



WBJF provides a variety of spherical roller bearings types and models, please contact us for specific information.
