CHAIN LINK MESH FENCE
Product Description
Payments：D/A
Delivery：-
Origin：-
Packing：-
Inspection：-
Chain Link Fence is a flexible woven wire fence in diamond opening offering excellent visual and aesthetic effects, widely used for farming fencing, airport, power plants, highways, playground and residential perimeter fencing.
Chain link mesh is popularly made of wire gauges from 14 gauge (light type fence), 12 gauge (heavy type fence) to 10 gauge (very heavy fences), according to international standards.
Chain link fence mesh is a durable, secure and low-cost fencing material, commonly made of galvanized steel wire, also available with a colored vinyl coating.
Using chain link fence for farm fencing has several benefits:
Unobstructed view through the fence;
Difficult to climb;
Smooth and safe for animals;
Strong and durable in uses;
Easy and quick installation and low maintenance cost.
Finishes: Aluminum, galvanised or PVC-coated.
Mesh openings: 1/2", 3/4", 4/5", 1", 2"
Posts: Y post, T post
Hot galvanized, green painted or black painted
Products Details

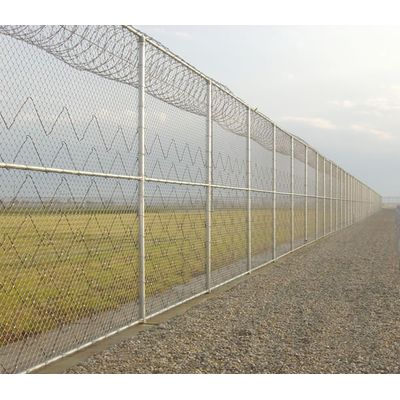

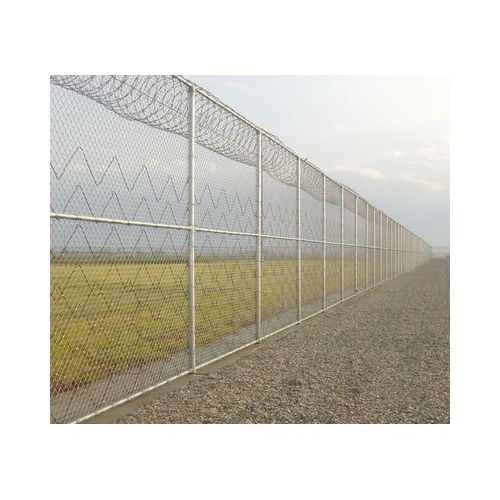

Anticlimbing Galvanized Chain Link Mesh Fence
Chain link mesh fence with gates for substation fencing, 9 Gauge
Fabric for panels and gates: 1" mesh 9 gauge galvanised chainlink mesh
Anti climb fencing tops:
Barbed wire attached to extension arm,
24"ø barbed tape fixed between barbed wire
Posts:
Galv steel post with cap
Corner, end & brace posts are galvanized steel posts
Fencing parts for installation:
Top rail and intermediate rail
Brace gate, corner and end posts
Diagonal truss rod and truss tightener.
Bottom tension wires installed within 8-inches of the respective fabric line.
Post caps to accommodate top rail.
Tie wires same gauge as fencing fabric wire.
Gates furnished with provisions for padlocking.
A"high voltage" warning signs on each accessible side of fence exterior.
