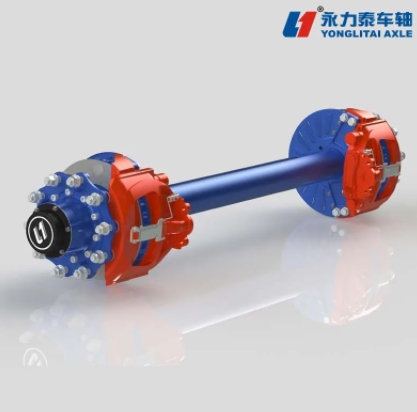

Disc Brake Wheel Axle For Semi Trailer
Foshan Yonglitai Axle Co., Ltd is a professional manufacturer of axles, bogies, and suspensions. We have been in machinery industry for 50 years. We are one of the largest semi trailer axle manufacturer factory in China. Due to our abundant experience, We have a greater market advantage in technology,products, prices and services in China and the international market.
Product Description
Company Profile
Foshan Yonglitai Axle Co., Ltd is a professional manufacturer of axles, bogies, and suspensions. We have been in machinery industry for 50 years. We are one of the largest semi trailer axle manufacturer factory in China. Due to our abundant experience, We have a greater market advantage in technology,products, prices and services in China and the international market.
Disk Brake Axle series
Yonglitai ’s Disk Brake Trailer Axle line services product for the light and medium axles, with ratings up to 12,000 lbs. Each brake is uniquely designed to meet the stopping power needs of the designated capacity, while yet conforming to the requirements of the applicable tire and wheel sizes. Various market-specific, corrosion-resistant coating options are available. Each one is recognized as the industry standard in performance and design. The Disk Brake Trailer Axles have a 120 mm offset and 19.5 or 22.5 inch wheel sizes. The Disk Brake Trailer Axles are from Yonglitai , a leader in heavy commercial vehicle brake solutions offering the optimum combination of weight and performance.
Axle beam
The Disk Brake Trailer Axle is based on an extremely strong seamless, cold-drawn beam design. The non-welded beam structure eliminates risks of weakening or material degradation. The Yonglitai axle beam has a higher strength-to-weight ratio than any other in China, and forms the basis for long-term durability under tough operating conditions.
Axle Capacity: 10T – 13T
Default Track: 1840MM/1820 (size are available)
Brake: 430x45MM/434x45MM/377x45MM(size are available)
Axle Beam: 127MM, 150MM, 127MM, 146MM (size are available)
Axle Beam Thickness: 12MM- 16 MM
Brand Name:L1
Material: Alloy steel.
Payment Terms: T/T, Western union, L/C....
Supply Ability: 150000PCS axles /50000sets suspensions each year.
MOQ: One container/50-60pics axle/5-12ets axle assembly.
Production Time: 15days.
Warranty: 12months.
Port:Foshan San Shui.
Travel safely and rest assured that you are getting the best products for your trailer and the best expertise available from Yonglitai Trailer Braking. Whether you need a complete installation or are doing the job yourself, we have just what you need.
- Proven improved stopping performance.
- All system components from one manufacturer.
- DIY kits with everything you need, except bearing grease and brake fluid for hazmat reasons.
- The name you can trust from an industry expert.
- Professional installation nationwide.
- Free technical support anytime!
Yonglitai's Disk Brake Conversion Kits
Contact us for the perfect fit for your trailer. We offer systems for any trailer with electric brakes:American Axle Series,Agricultural Axle,Single Axle,Air Suspension and Bogies.
All conversion kits include:
- Dexter Brakerite EHB Actuator (formerly Titan)
- Tandem Axle Brakeline Kit
- Four Premier Disc Brake End Kits
- All Necessary Installation Accessories
- On-Demand Technical Support
Why Go Disk Brake Trailer Axle
- Increased Brake Power
- Increased Reliability
- Better For Going Up and Down Steep Slopes
Disk Brake Trailer Axle Advantages
● Safety and reliability: Disk Brake Trailer Axle can greatly reduce braking distances, disc brakes
The pressure per square centimeter is four times that of a drum brake.The brake does not have the problem of brake fade, but just the opposite.
● Braking comfort: Use disc brakes to reduce lag and improve braking
The speed of the system's response. Using disc brakes there is no self-energizing
Phenomenon. Rapid response. It can better meet and realize the precise control of ABS.
● Maintainability: Using disc brakes can effectively reduce dwell time. replacement system
The moving brake lining is simple.
● Modular: Easy to install and maintain, saving time and effort.
● Light weight: Light weight axle beam weight,improve user transportation efficiency.
● Smooth braking: Ensure that the tires are in soft contact with the ground to improve the smooth braking of the vehicle.
● Driving Comfort: Filters vibrations generated by the vehicle and protects the frame and the cargo in transit.
This Disk Brake Trailer Axle is a great option for those trailers that have to go up and down steep slopes on a regular basis. Disk Brake Trailer Axle can also provide better braking power and more reliability when towing a trailer, which will give you peace of mind as you're driving to that next job. The axle comes fully assembled and is an ideal choice for lowboys, flatbeds, and gooseneck trailers. If you have questions about this axle, then please don't hesitate to contact us. At Yonglitai ’s Disk Brake Trailer Axle line services, we're always happy to help our customers find exactly what they need!
Disk Brake Trailer Axle Features
(1) The one-piece extruded axle adopts a special thickening process to strengthen the weak position of the axle head, and the axle body has excellent performance;
(2) Using Knorr-Bremse/Hende brakes, imported brands, after 10 years of application by Yonglitai, the braking performance is stable and the response is fast;
(3) The use of molybdenum-containing high carbon disc has good high temperature performance and long service life;
(4) The forging brake base plate is more solid and reliable;
(5) Using customized high-precision bearings, long service life;
(6) Use extreme pressure high-quality grease, which can be used in extreme working conditions of -40℃∽150℃;
