JHFVISTA E3000 UV FLATBED PRINTER/UV PRINTER/PRINTER/PRINTNG MACHINE/INKJET PRINTER/FLATBED PRINTER/JHF VISTA
Product Description
contains other products and information you need, so please check it out.
Specifications
Description
Detailed Product Description
1. high quality UV flatbed printer2. great stability
3. best after sales service

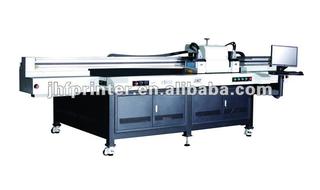

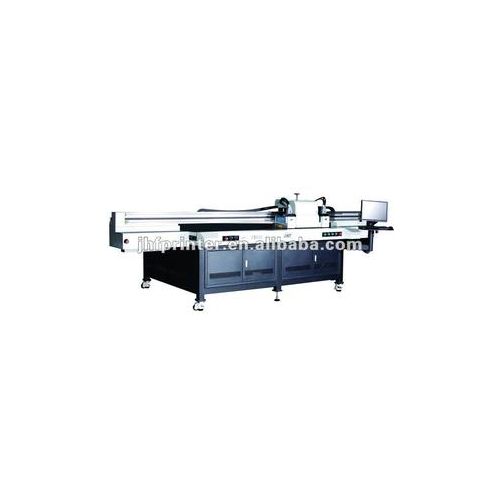

JHFVISTA E3000 is a professional wide format flatbed UV printer and widely applied onto many rigid substrates. Besides, UV ink is harmless and friendly to the operator and environment.
Vista E3000 is designed for high accuracy, high stability and high efficiency. Vista E3000 has the world's leading double sides printing system, intelligent on demand control function, high efficiency reciprocating print, which presents you outstanding and colorful printing results in indoor, outdoor, decoration, sigh and screen printing fields.
Technical Specification
E3000 | |||
Print head Technology | 4,5,6,7,8,10,12,14 Konica Minolta 1024 print heads | ||
Print Resolution | Up to 1440dpi | ||
Dimension (mm) | Length | Width | Height |
Printer Size | 2130 | 4215 | 1400 |
Table Size | 1797 | 2533 | |
Printing size | 1260 | 2460 | |
Print Mode | Pass | Resolution | Output(m2/h) |
4 | 720×720 | 40 | |
6 | 720×1080 | 26 | |
8 | 720×1440 | 20 | |
Input Voltage | Single phase 220V(50/60Hz) or Triphase 380V(50/60Hz) | ||
Power | 10KW | ||
Material Fixation | Vacuum 4 zones | ||
Weight of printer | 1200kg | ||
Weight of package | 600kg | ||
Table Bearing | ≤35kg/m2 | ||
Printing Height | ≤60mm, 130mm optional | ||
Media Thickness | ≤50mm, 120mm optional | ||
Temperature | 18-28°C | ||
Humidity | 40%-80% | ||
Print Mode | Uni-/Bi-directional | ||
Compress Air Comsumption | 0.1m3/h | ||
Noise | <75db | ||
Interface | PCI | ||
Inks | 1 ltr/5 ltr packaged UV inks. UV inks will last over 2 years depending on location and media-type | ||
Accessories | Wasatch RIP software, Vacuum Pumps | ||
Attachments by Customer | Compressed Air, Electrical Connections, Wall Socket, Air Condition Device, Computer |
