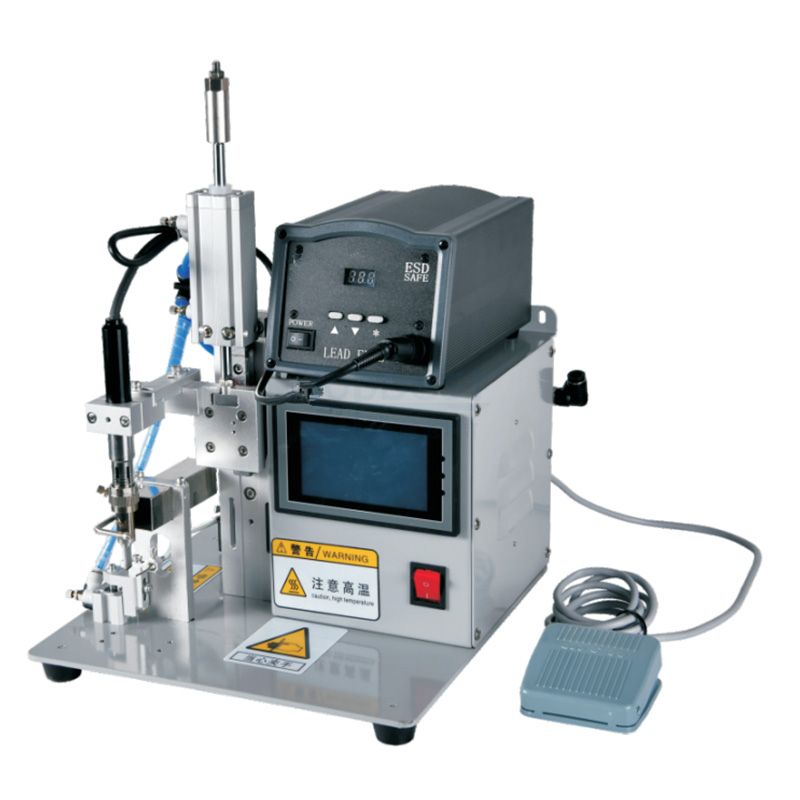

Semi-Auto soldering machine 688-QG

Advantage

1. HZ-688 soldering machine is widely used in the field of wire harness welding, data cable USB. microUSB. miniUSB. apple

Head. Type-c. HDMI plug connection. Motor line, wire harness welding. PCB board. LED light/strip/board. electronic

Components, switches, adjustable resistors, electronic cigarettes, rectifier Bridges, waterproof joints and other connector welding, welding field is widely used

Strong ability, debugging installation is easy to learn

2. HZ-688 adopts HZ-338H-4.3 inch PLC touch screen integrated machine, with timely and reliable response and anti-interference. Support system holding

Continue to update.

3. HZ-688 soldering system  is divided into electric and pneumatic versions, the system can support free switching of two versions at the same time, clean

Soldering head mode can also support different needs to switch freely, flexible. The function is more advanced.

4. If the parameters are out of order due to improper operations, you can restore the default parameters to the pre-factory Settings

Technical parameters

1. Power source: single-phase AC 220V, rated voltage 210V-240V 50/60 Hz (110V-24V can be customized

Pressure style)

2. Air pressure: 0.2-0.6MPa(clean and dry air is required)

3. Temperature: (-10) - (+60℃) no wind, no dust

4. Type number: HZ-688-QG

5. Foot inch: length 410* width 350* height 500MM

6. Weight: about 15KG
