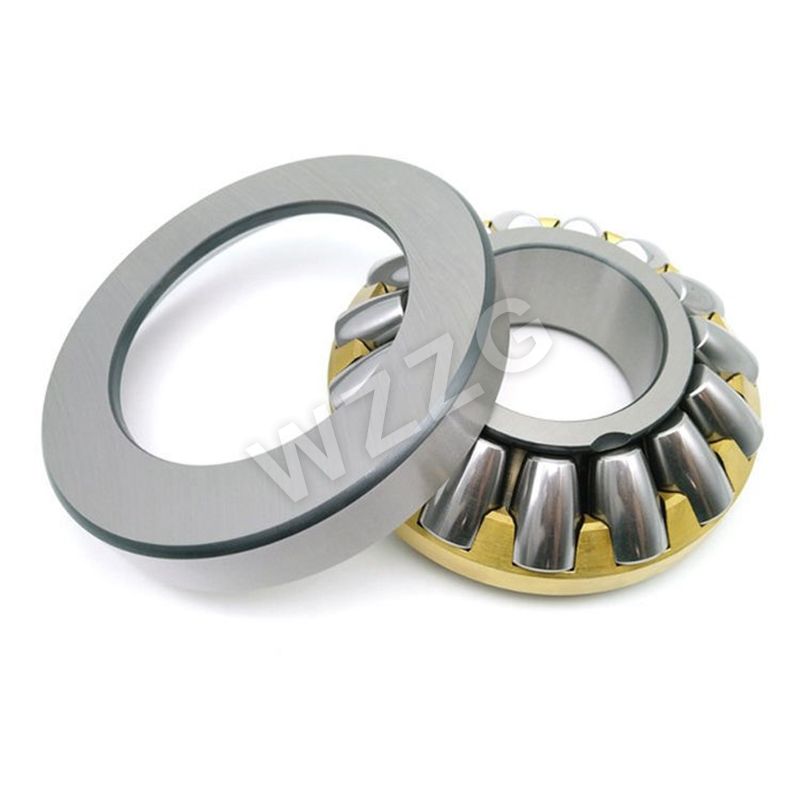

Spherical Roller Thrust Bearing

Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers

Features

● High load carrying capacity

The large number of rollers, which have an optimum conformity with the washer raceways, enables the bearings to accommodate heavy axial and simultaneously acting radial loads.

● Accommodate misalignment

SKF spherical roller thrust bearings are self-aligning and can accommodate misalignment

● Separable design

SKF spherical roller thrust bearings are separable, making it possible to mount and dismount the housing washer separately from the shaft washer and roller and cage assembly. In addition this facilitates maintenance inspections.

● High speed capability

The cage designs and the optimum conformity of the rollers with the washer raceways make the bearings suitable for relatively high speeds.

● Long service life

The special roller profile reduces edge stresses at the roller/raceway contact.

● Low friction

The optimized roller end / flange contact keeps frictional heat at low level, even at high speeds.

Application

Spherical roller bearings are mainly used in oil drilling rigs, steelmaking machinery, hydroelectric generators, vertical motors, propeller shafts for ships, tower cranes, extruders, etc.
