Home > Energy > Solar Energy Products > 60 Cell 250W 270W 280W Monocrystalline PV Solar Panel

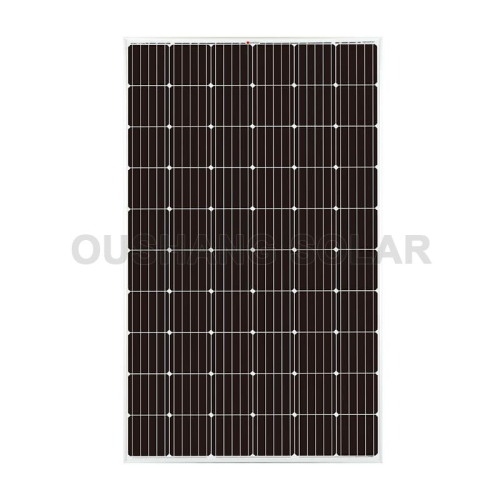

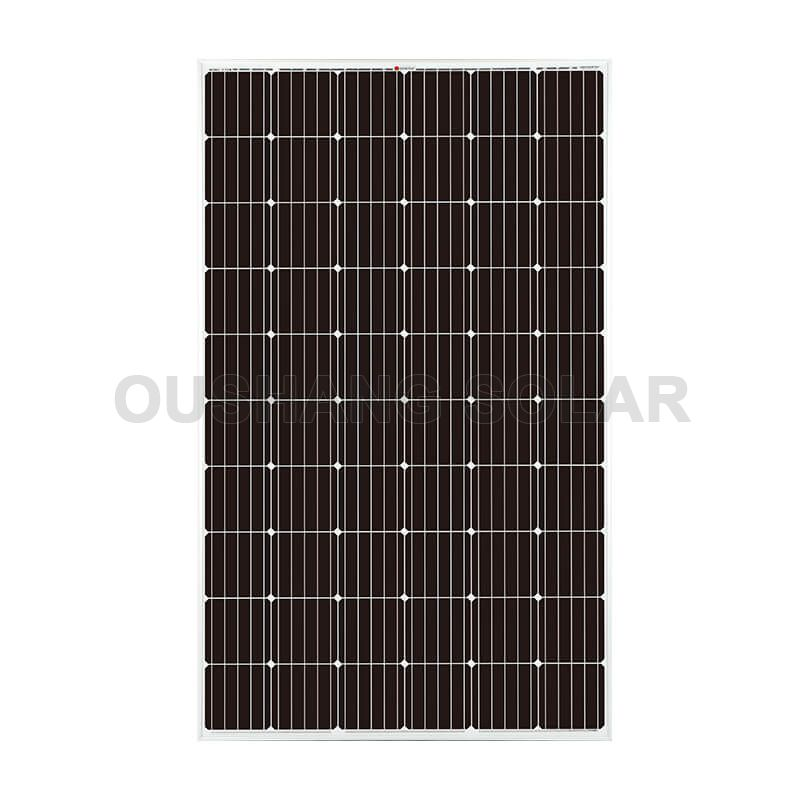

60 Cell 250W 270W 280W Monocrystalline PV Solar Panel

Specializing in the production of 250W, 270W, 280w Solar Panels, the maximum power current is 8.20A, 8.57A, 8.89A, and the working temperature is -40℃~+85℃.

Product Description

60 Cell 250W 270W 280W Monocrystalline PV Solar Panel Attribute

Watts(250W-300W):

250W, 270W, 280W

Monocrystalline/Polycrystalline:

Monocrystalline Solar Panel

Product Description

OS-M60-250W~270W Monocrystalline Photovoltaic Module

Key Parameters

Cell Mono
No. of cells 60
Rated Maximum Power (Pmax)  250W~280W
Junction Box IP67
Maximum System Voltage 1000V DC
Operating Temperature -40℃~+85℃
Connectors  MC4



Model

OS-M60-250

OS-M60-270

OS-M60-280

Cell

MONO

MONO

MONO

Max Power

250W

270W

280W

Max Power Voltage

30.5V

31.5V

31.5V

Max Power Current

8.20A

8.57A

8.89A

Open Circuit Voltage

36V

38.05V

38.86V

Short Circuit Current

9.02A

9.08A

9.22A

Number of Cells

60(6*10)

60(6*10)

60(6*10)

Size of Cells (mm)

156*156

156*156

156*156

Dimensions(mm)

1640*992*35

1640*992*35

1640*992*35

Maximum system voltage

1000VDC

Junction Box Protection

IP67

Cables

4mm2

Connector

MC4

Max wind load

2400Pa

Max snow load

5400Pa

Operating Temperature

-40℃~+85℃

Power Tolerance

±3%



Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production in China since 2014.The auto production is able to supply three containers per day. We have shipped thousands of containers of solar panels to all over the world. Our products are exported to Europe, Middle East, South America, Southeast Asia and Africa. The factory and products are qualified by TUV.

OS-M60-250W~270W Monocrystalline Photovoltaic Module

Production

We have engaged in photovoltaic modules since 2014. Our factory ships over 150 containers of solar panels to all over the world, Europe, America, Middle east, Southeast Asia and Africa . With years of experience, our strict QC ensure our products to work well under different sunshine condition globally.



OS-M60-250W~270W Monocrystalline Photovoltaic Module



PV modules details and material:

1 EVA

OS-M60-250W~270W Monocrystalline Photovoltaic Module

Over 90% high transmittance EVA, high gel content to provide good encapsulation and protect cells from vibration with longer durability.



2 Glass, Cell, Frame

OS-M60-250W~270W Monocrystalline Photovoltaic Module

Glass: Ultra clear tempered glass. 30% lower reflection.

Cell: High efficiency, 5BB and 9BB available, Anti-PID.

Frame: 120 Tensile strength frame, 110% seal-lip design glue injection. (Black/sliver Optional)



3 Junction box, Connector and Labels

OS-M60-250W~270W Monocrystalline Photovoltaic Module



Junction box: IP 67 waterproofness, Junction box full-glue-filled.

Connector: MC4 500N tensile strength with 4mm2 qualified cable.

Labels: Waterproof labels with all parameter and brand.



Package and Delivery

OS-M60-250W~270W Monocrystalline Photovoltaic Module



We have engaged in photovoltaic modules since 2014. Our factory ships over 150 containers of solar panels to all over the world, Europe, America, Middle east, Southeast Asia and Africa . With years of experience, our strict QC ensure our products to work well under different sunshine condition globally.



FAQ

Question: Is your company manufacturer or trade company?

Answer: Manufacturer.



Question: Is sample order available?

Answer: Yes.



Question: Is OEM and ODM available?

Answer: Yes.



Question: What is your production lead time?

Answer: Around 2~3 weeks.
